CWF Titanium Arcadian Matte TAD Edition

Full House
Add to cart ⌃
  • CWF Titanium Arcadian Matte TAD Edition
  • CWF Titanium Arcadian Matte TAD Edition
  • CWF Titanium Arcadian Matte TAD Edition
  • CWF Titanium Arcadian Matte TAD Edition
  • CWF Titanium Arcadian Matte TAD Edition
  • CWF Titanium Arcadian Matte TAD Edition
  • CWF Titanium Arcadian Matte TAD Edition
  • CWF Titanium Arcadian Matte TAD Edition
  • CWF Titanium Arcadian Matte TAD Edition
1 9
$1,375.00
$1,375.00 $1,375.00
0% off Sold out
VariationMean Skull

Overview

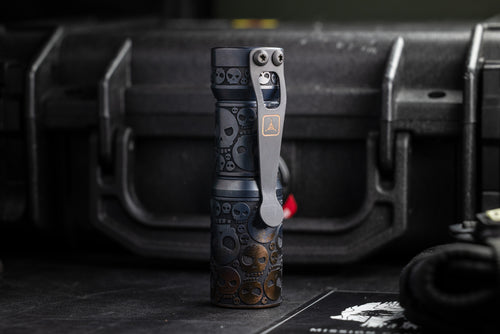

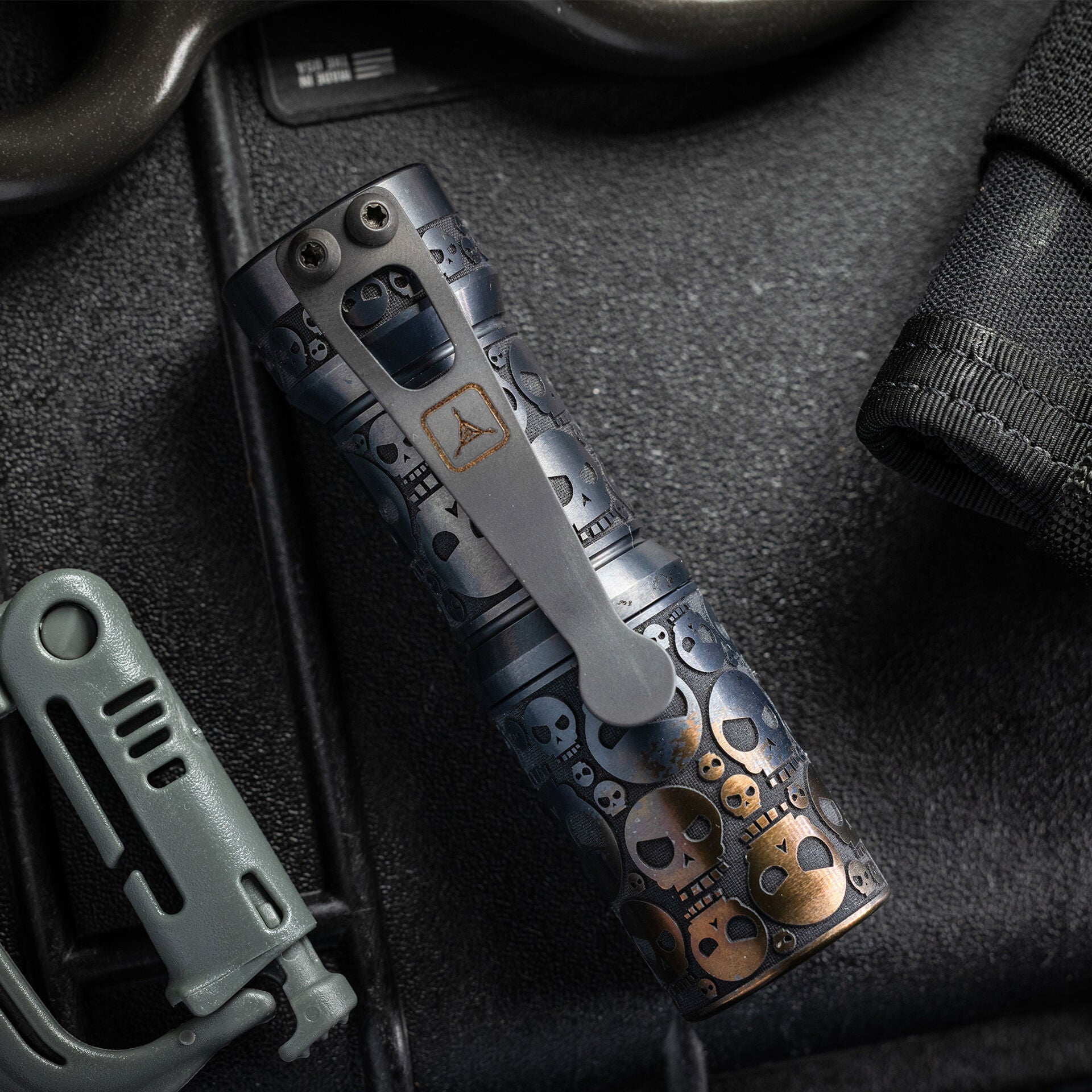

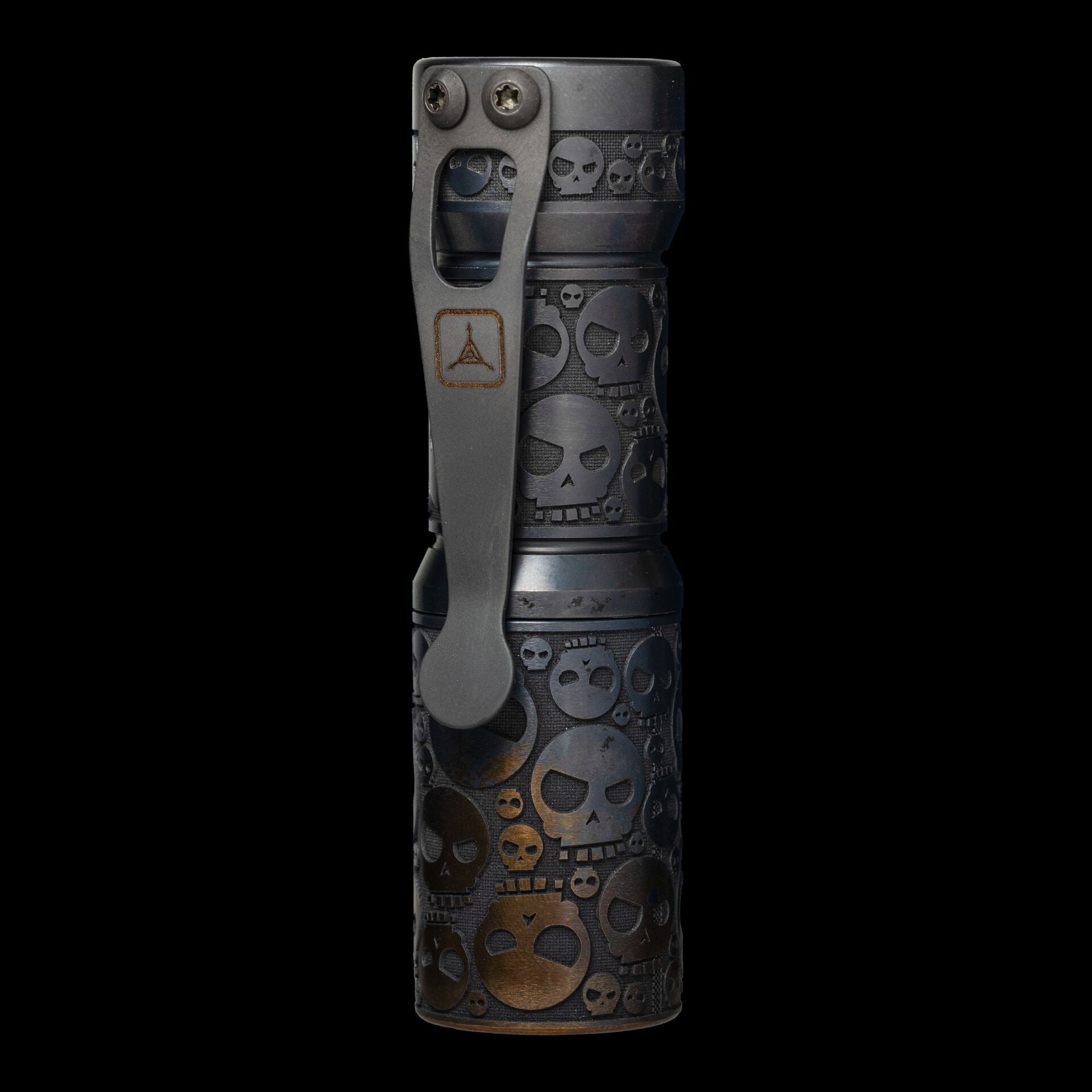

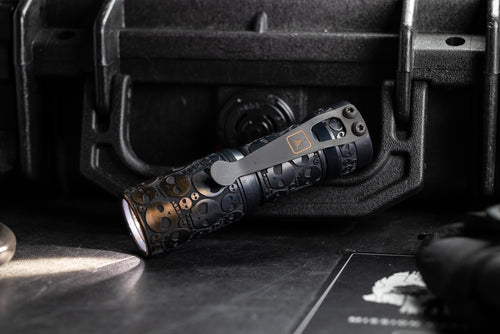

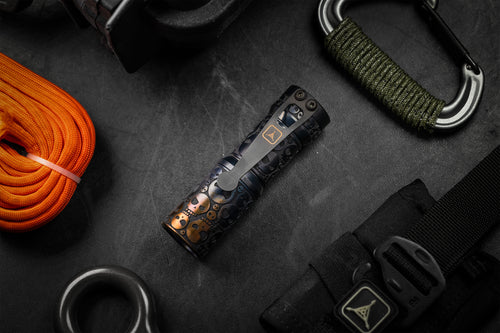

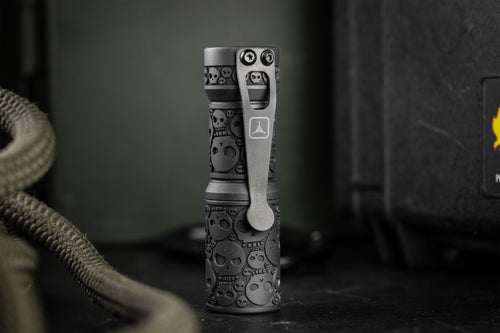

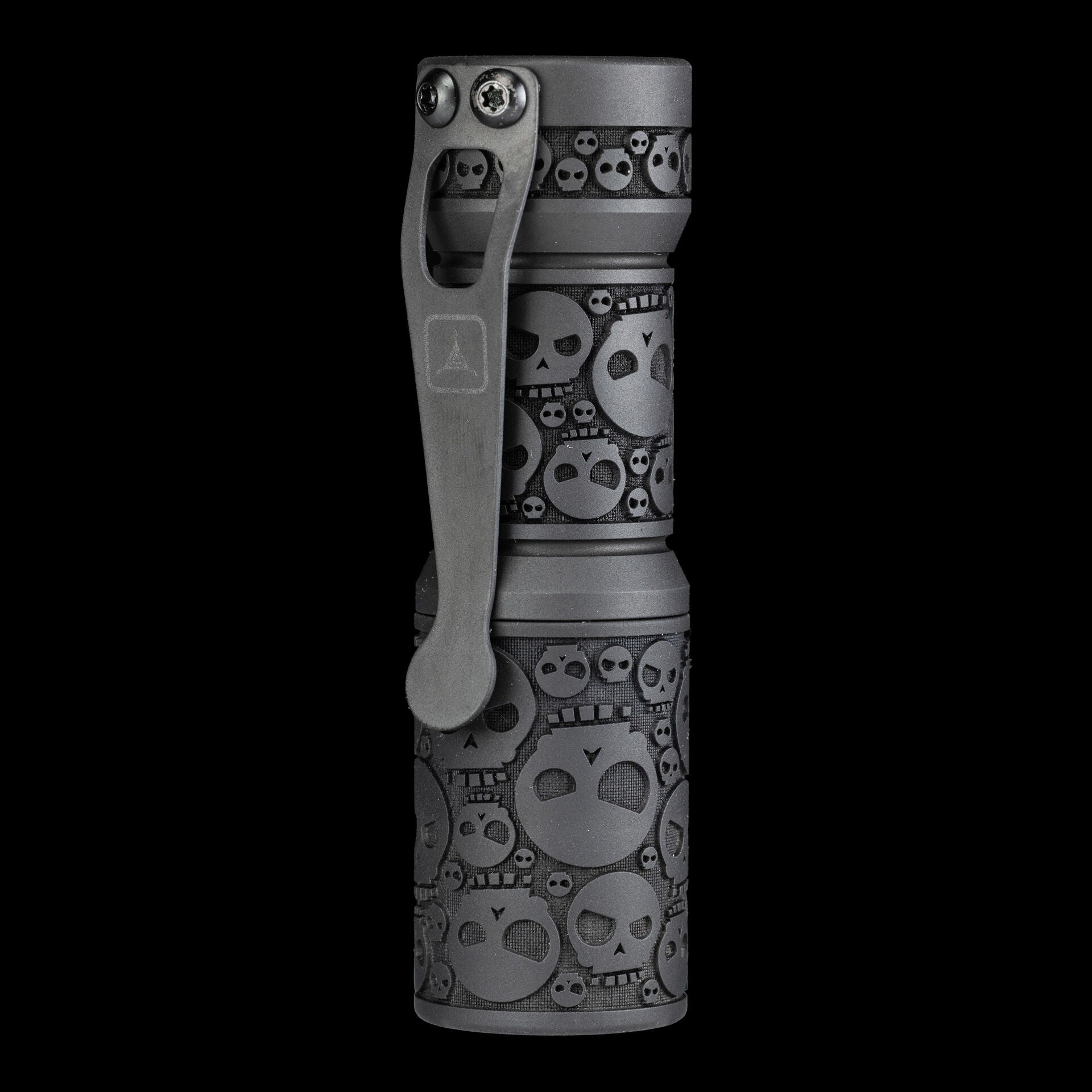

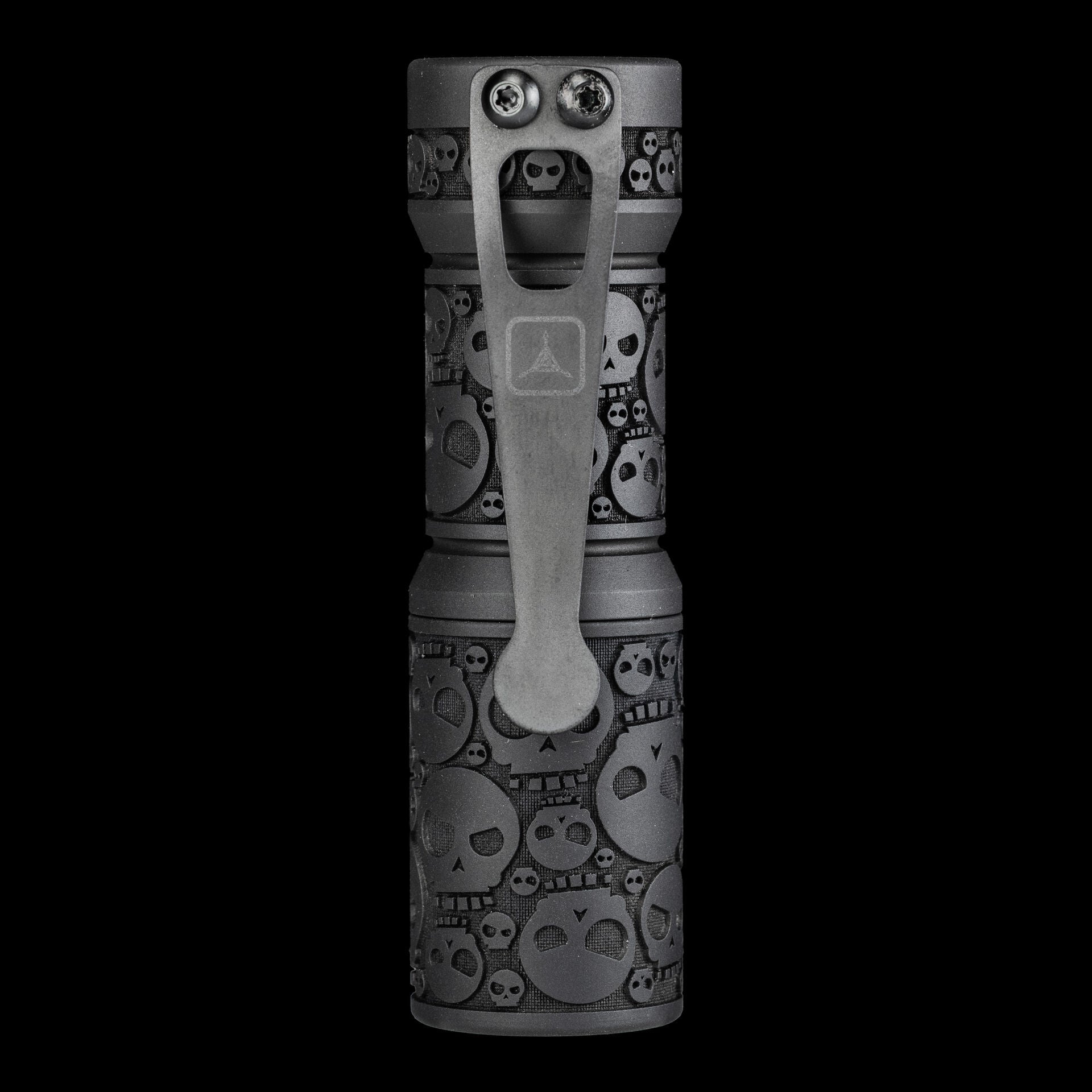

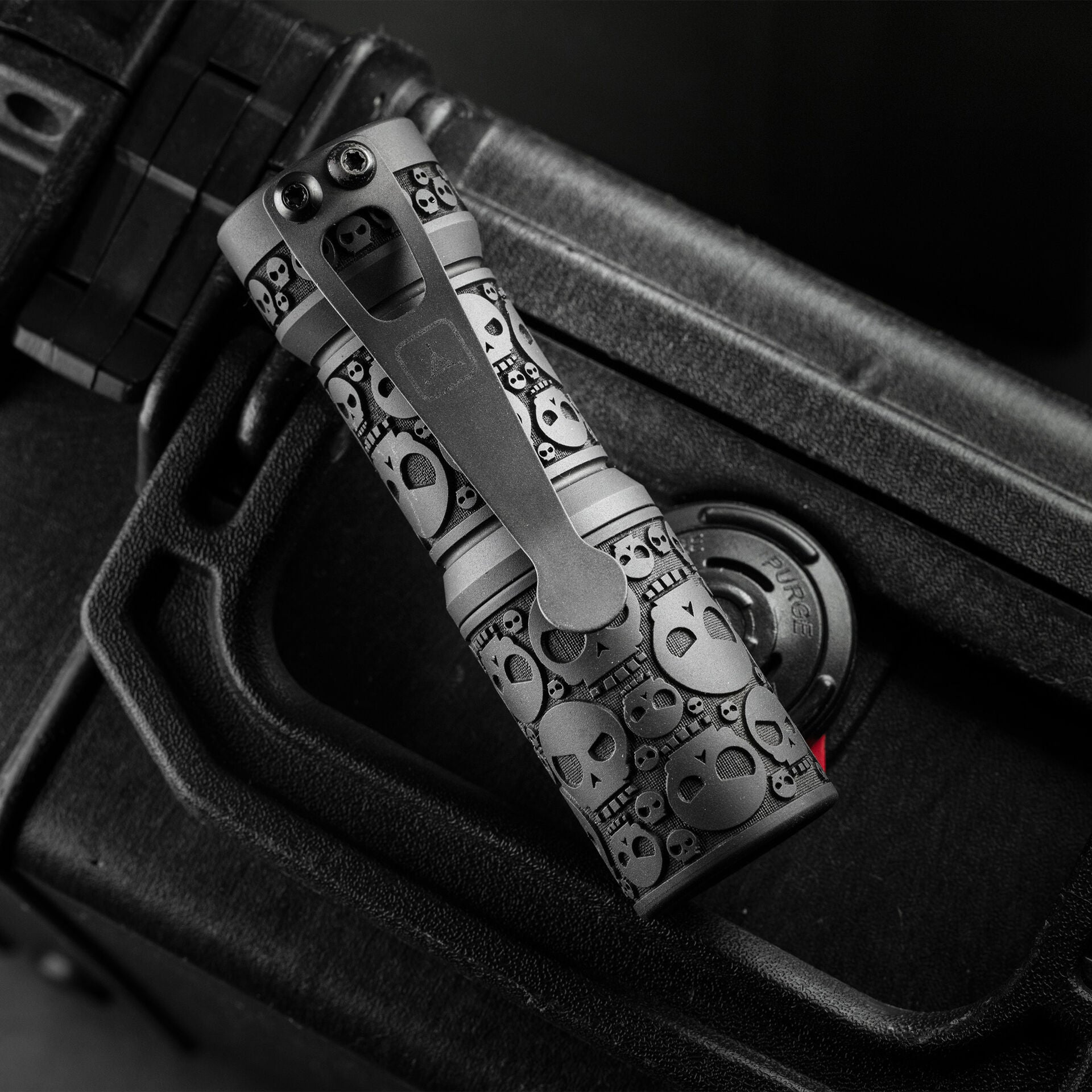

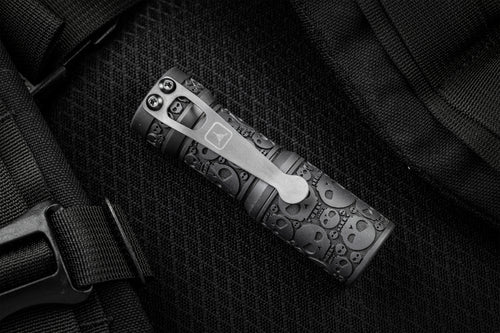

**This extremely limited edition Titanium Mean Skull Arcadian is the result of a collaboration between Ti2Designs, CWF and Triple Aught Design. This variation comes with the Quantum Dragon driver in either gloss or matte finish. **

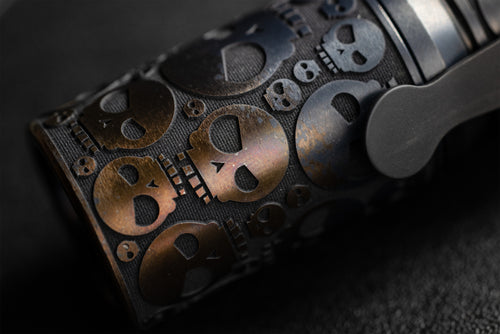

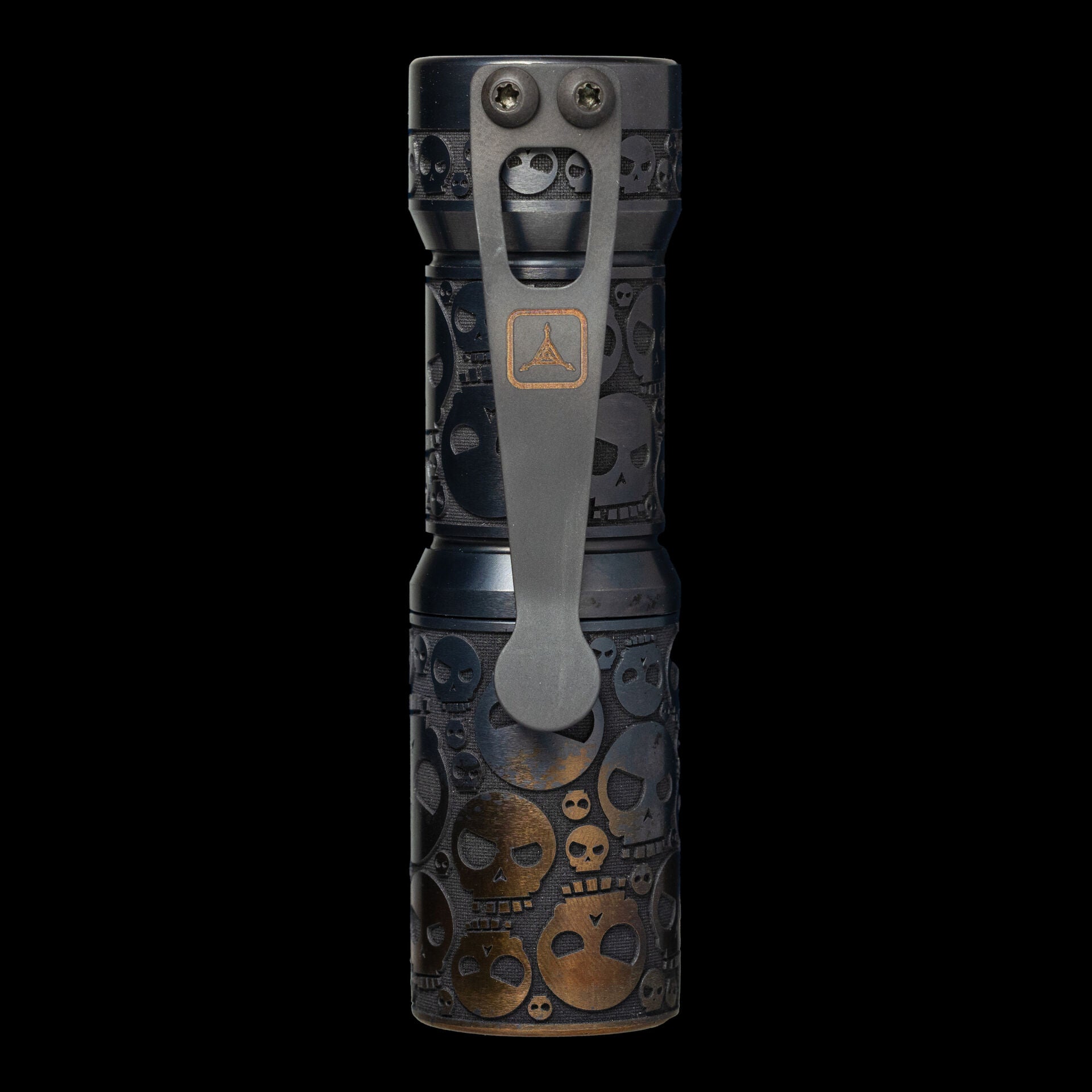

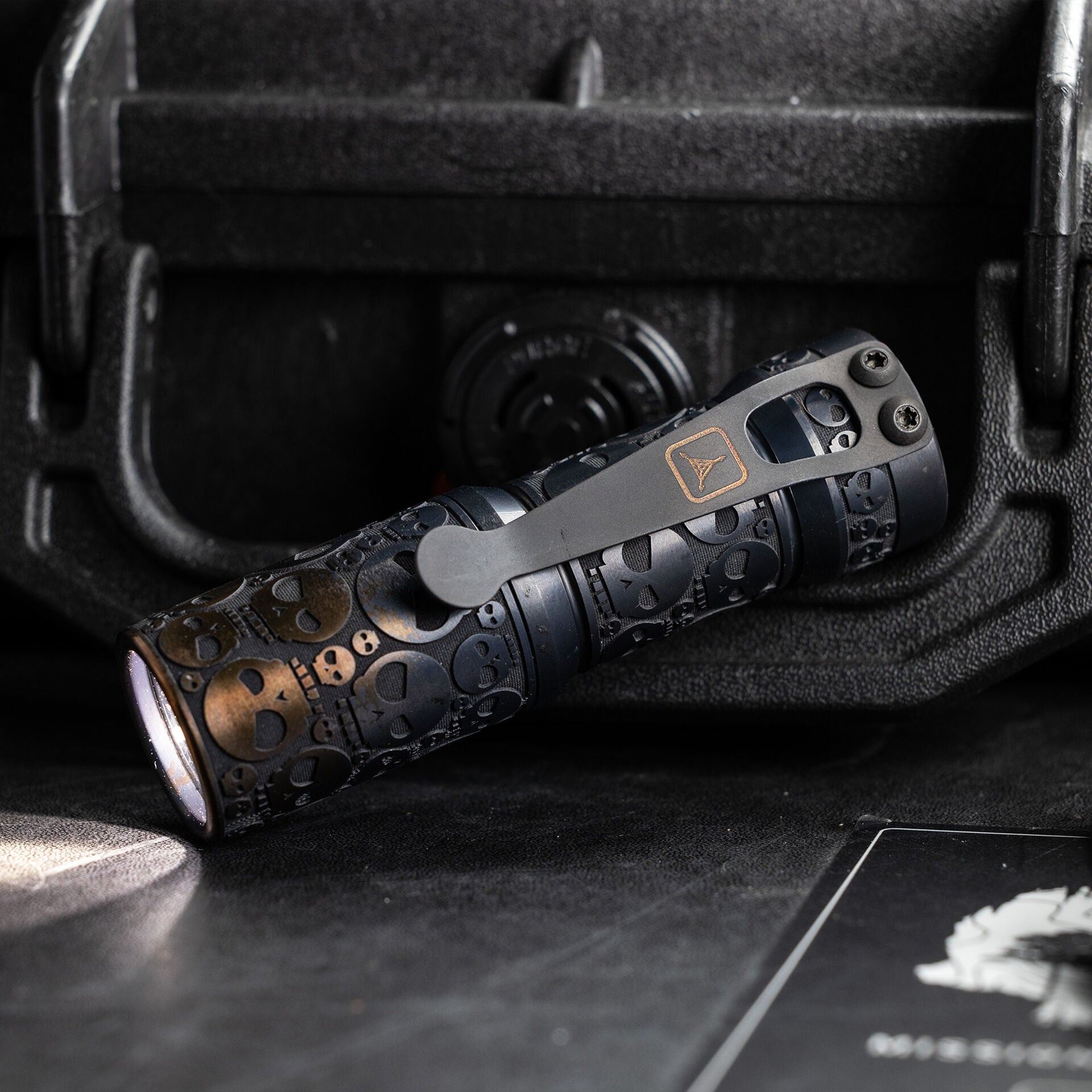

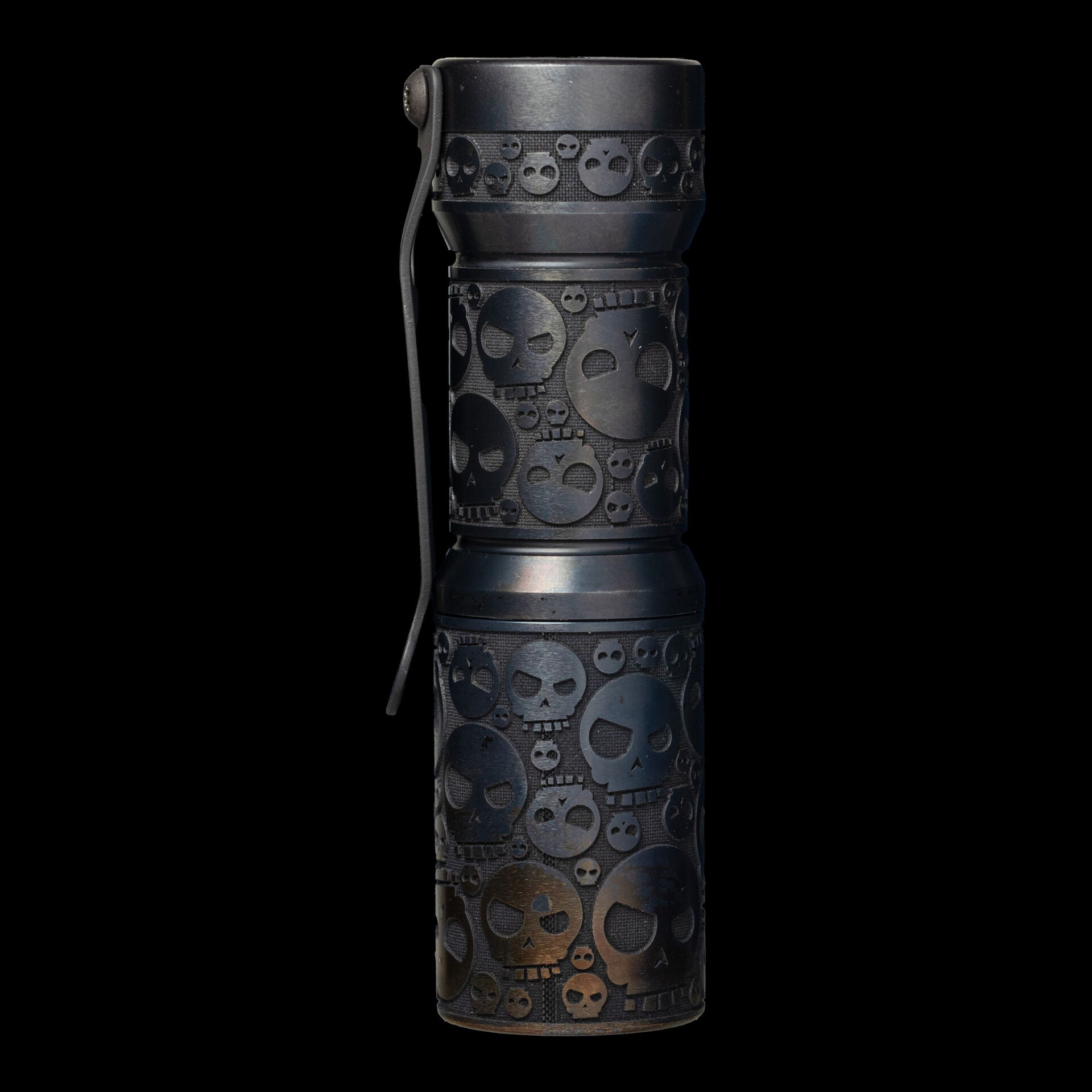

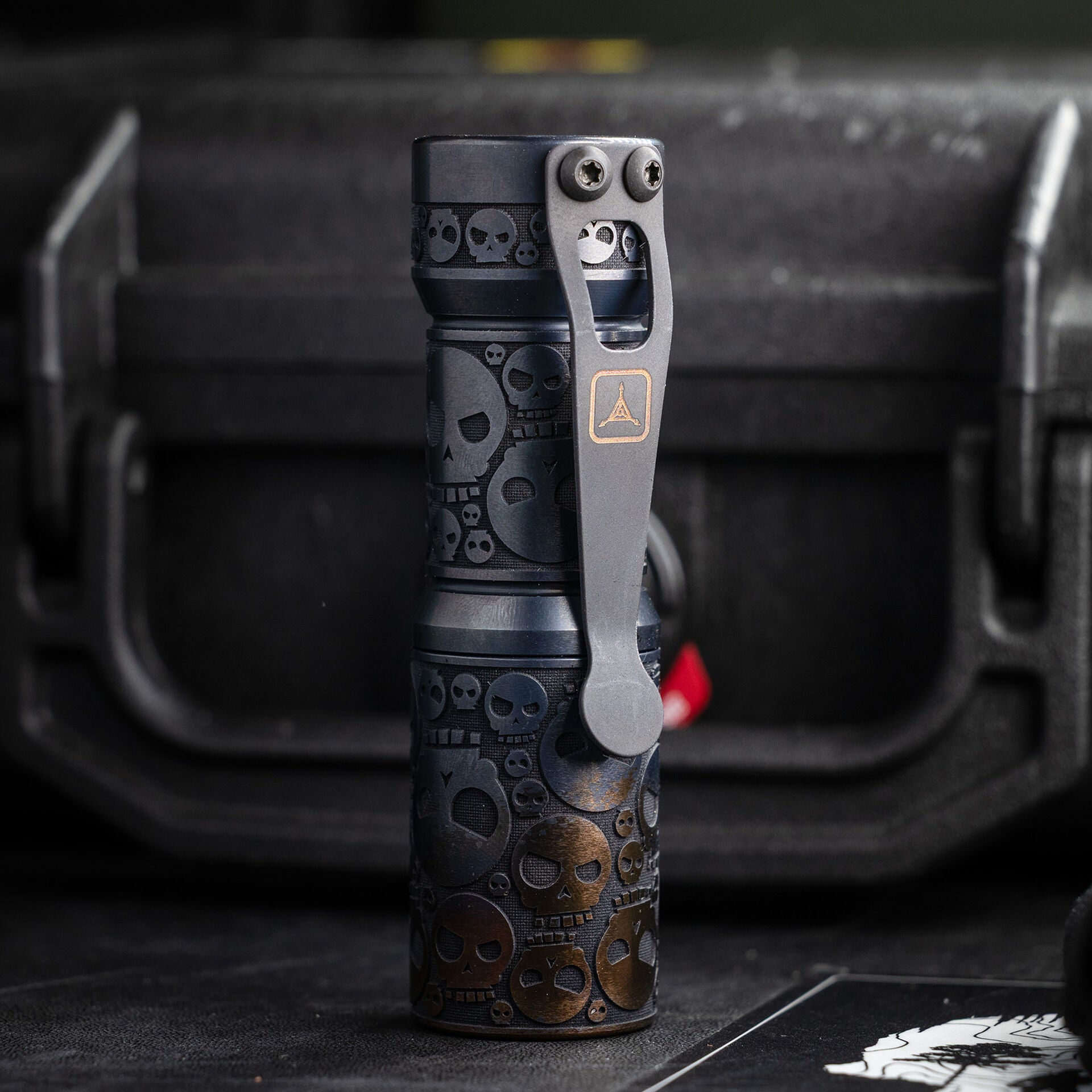

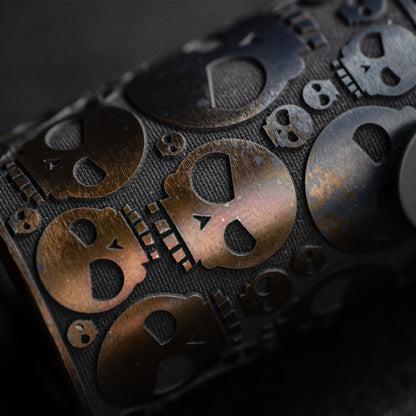

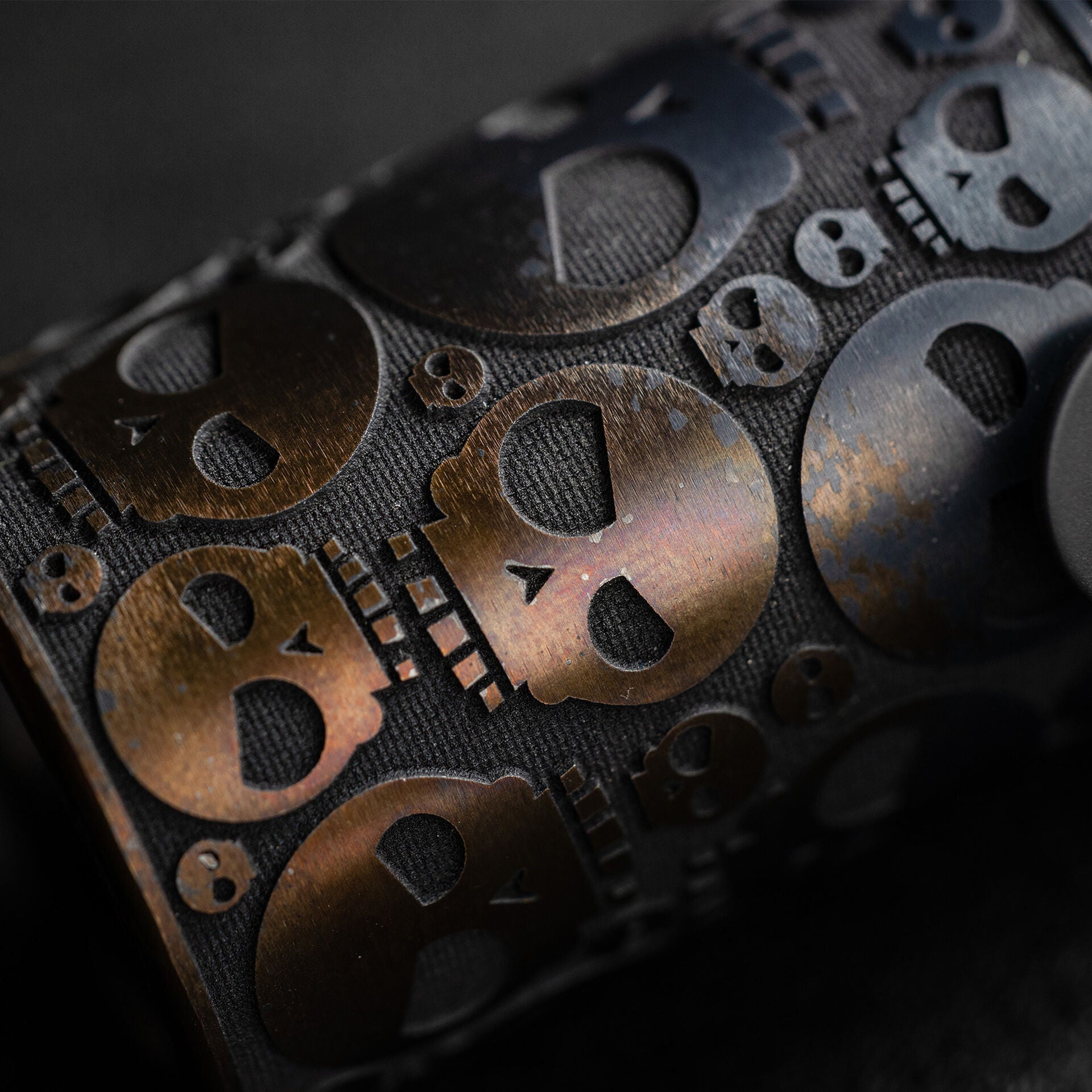

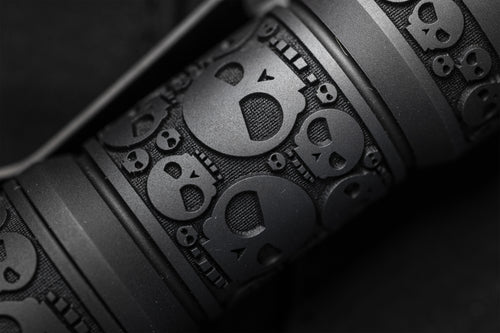

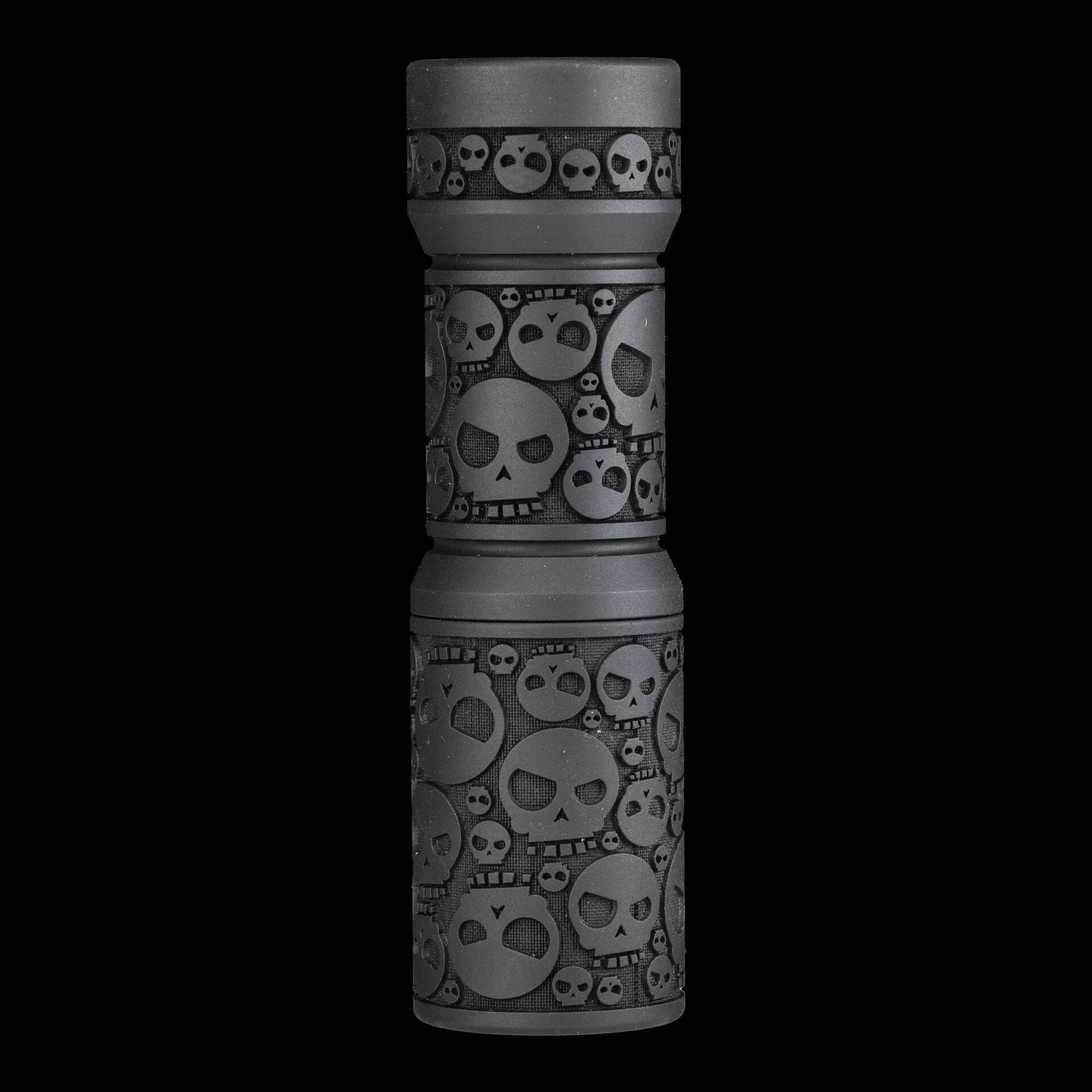

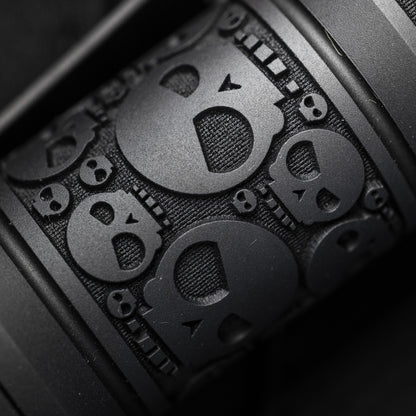

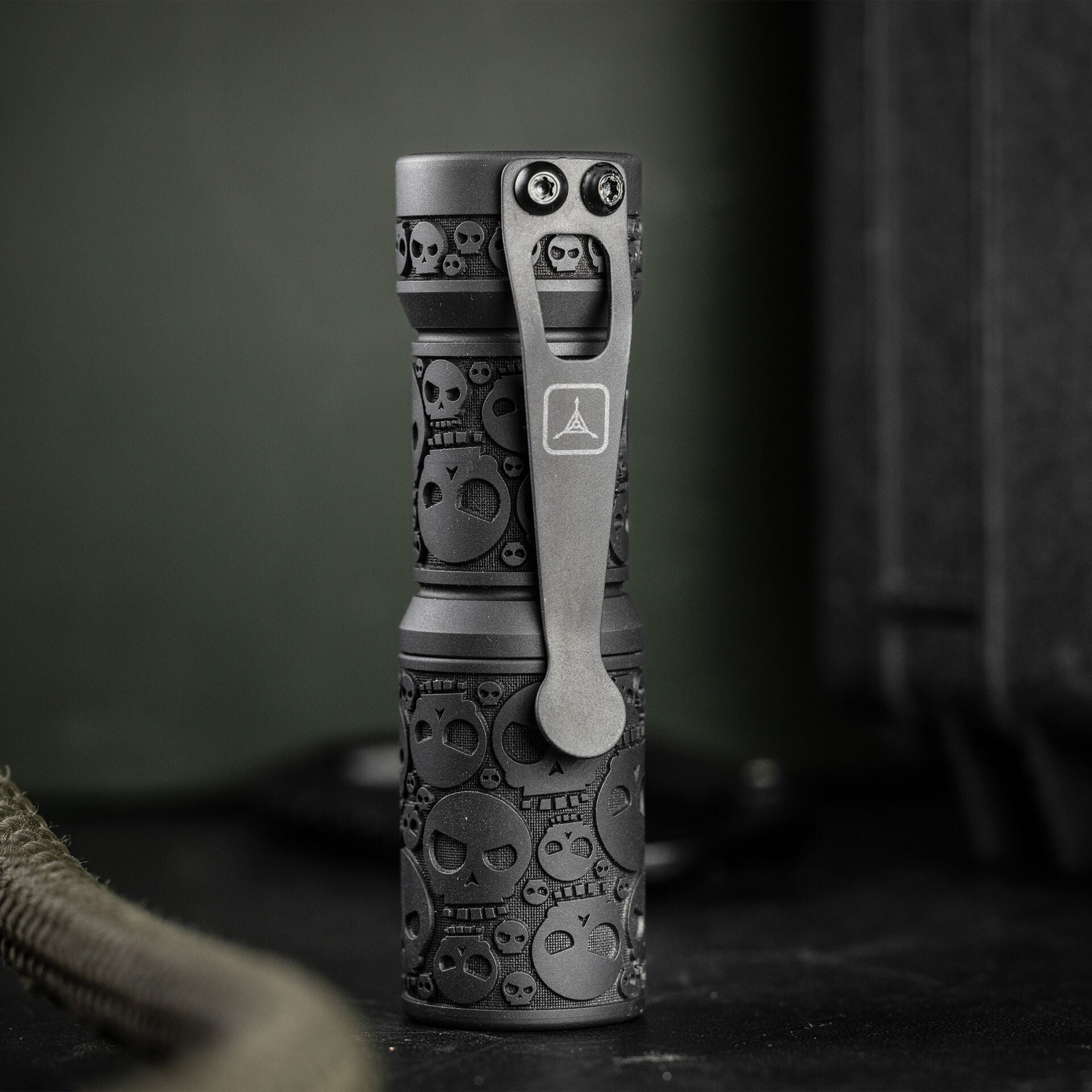

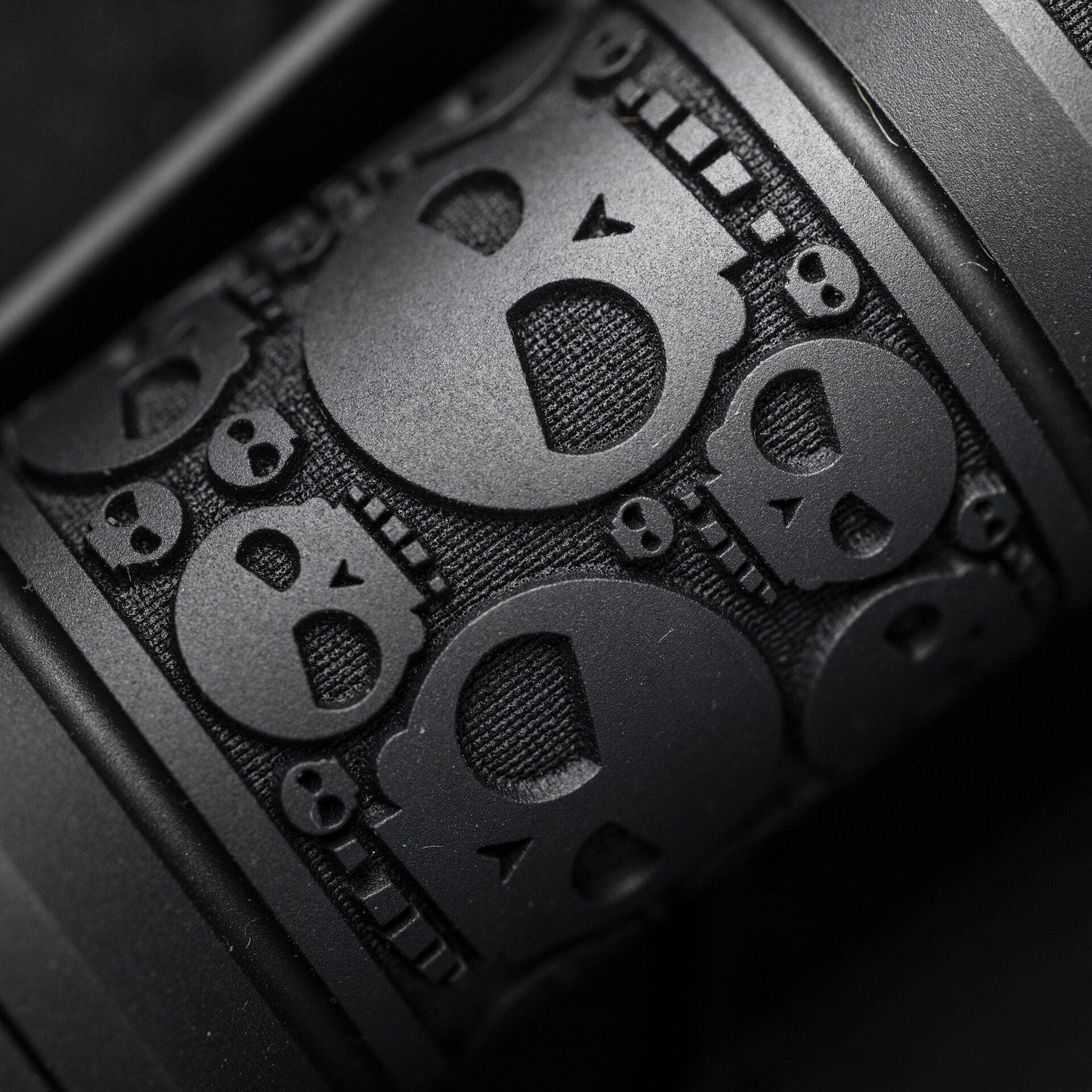

 Starting with CWF’s class leading titanium Arcadian, Mike Bond of Ti2 Designs laser applies our Mean Skull pattern like no one else can. Each light spends thirty hours under the laser to get this intricate multi-leveled pattern! Three unique laser setups are required using a powerful 60 watt MOAPA laser. Mike then applies his Fallout TRD (Thermo Reactive Diffusion) carbon based finish. Finally, the lights are hand sanded. The resulting combination makes for a show stopping light that demands the centerpiece of any collection.

The Arcadian flashlight is a masterpiece of innovation, blending cutting-edge technology with thoughtful design to redefine what it means to be feature-packed and dependable. At its core is the advanced Quantum Dragon paired with a premium LED engine featuring the Nichia 219c 4000K LED. Don’t miss this opportunity to own a premium, feature-packed Arcadian flashlight with everything you need for a customized lighting experience!





Users can enjoy a host of customizable features, including adjustable power levels, and a convenient triple-tap strobe function. Built for reliability, the Arcadian ensures safety with thermal regulation and voltage protection while maintaining a sleek, compact form. Powered by an 18350 battery, with dimensions of just 0.99 inches in diameter and 3.5 inches in length, this flashlight is the ultimate companion for any adventure.

This extremely limited edition Titanium Mean Skull Arcadian is the result of a collaboration between Ti2Designs, CWF and Triple Aught Design.

 Starting with CWF’s class leading titanium Arcadian, Mike Bond of Ti2 Designs laser applies our Mean Skull pattern like no one else can. Each light spends thirty hours under the laser to get this intricate multi-leveled pattern! Three unique laser setups are required using a powerful 60 watt MOAPA laser. Mike then applies his Fallout TRD (Thermo Reactive Diffusion) carbon based finish. Finally, the lights are hand sanded. The resulting combination makes for a show stopping light that demands the centerpiece of any collection.

The Arcadian flashlight is a masterpiece of innovation, blending cutting-edge technology with thoughtful design to redefine what it means to be feature-packed and dependable. At its core is the advanced Chimera MAX driver, paired with a premium LED engine featuring the Nichia 519A 4500K LED. Don’t miss this opportunity to own a premium, feature-packed Arcadian flashlight with everything you need for a customized lighting experience!

Users can enjoy a host of customizable features, including adjustable power levels, and a convenient triple-tap strobe function. Built for reliability, the Arcadian ensures safety with thermal regulation and voltage protection while maintaining a sleek, compact form. Powered by an 18350 battery, with dimensions of just 0.99 inches in diameter and 3.5 inches in length, this flashlight is the ultimate companion for any adventure.

Due to the nature of custom items, slight variations may occur.

Specifications

Modes

  • Programmable Modes: See below



Material

  • Titanium Body

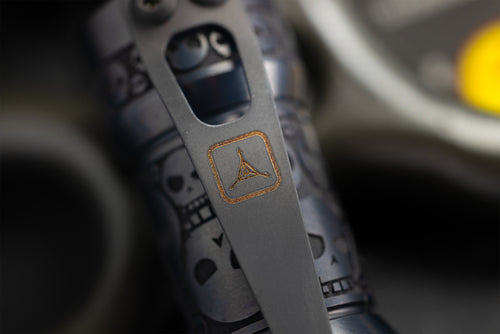

  • Titanium Pocket Clip

  • Copper Heat Sink



Dimensions

  • Length: 3.5 in

  • Bezel Diameter: .99 in

Weight

  • Including Batteries: 3. oz

Battery

  • (1) 18350 Flat Top

Features

  • Nichia 219c 4000K LED

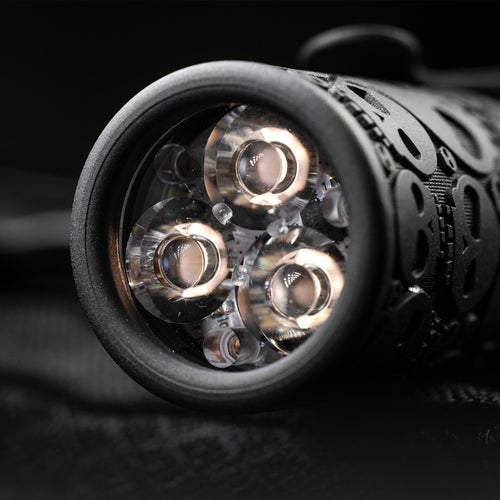

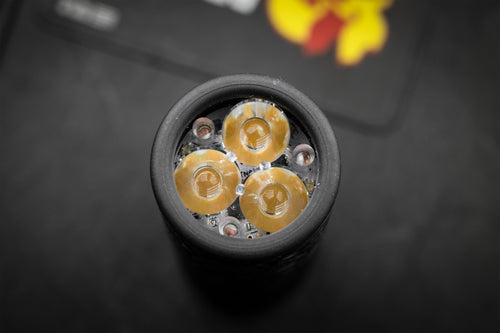

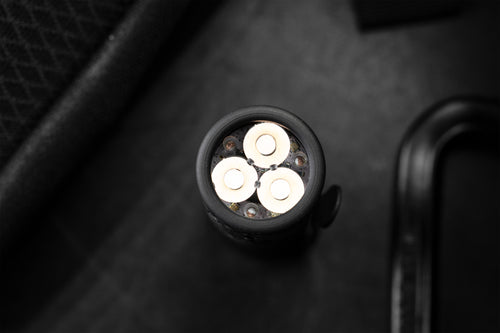

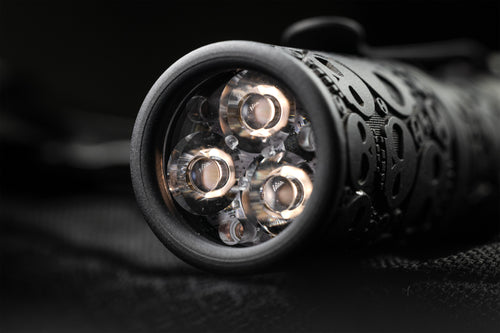

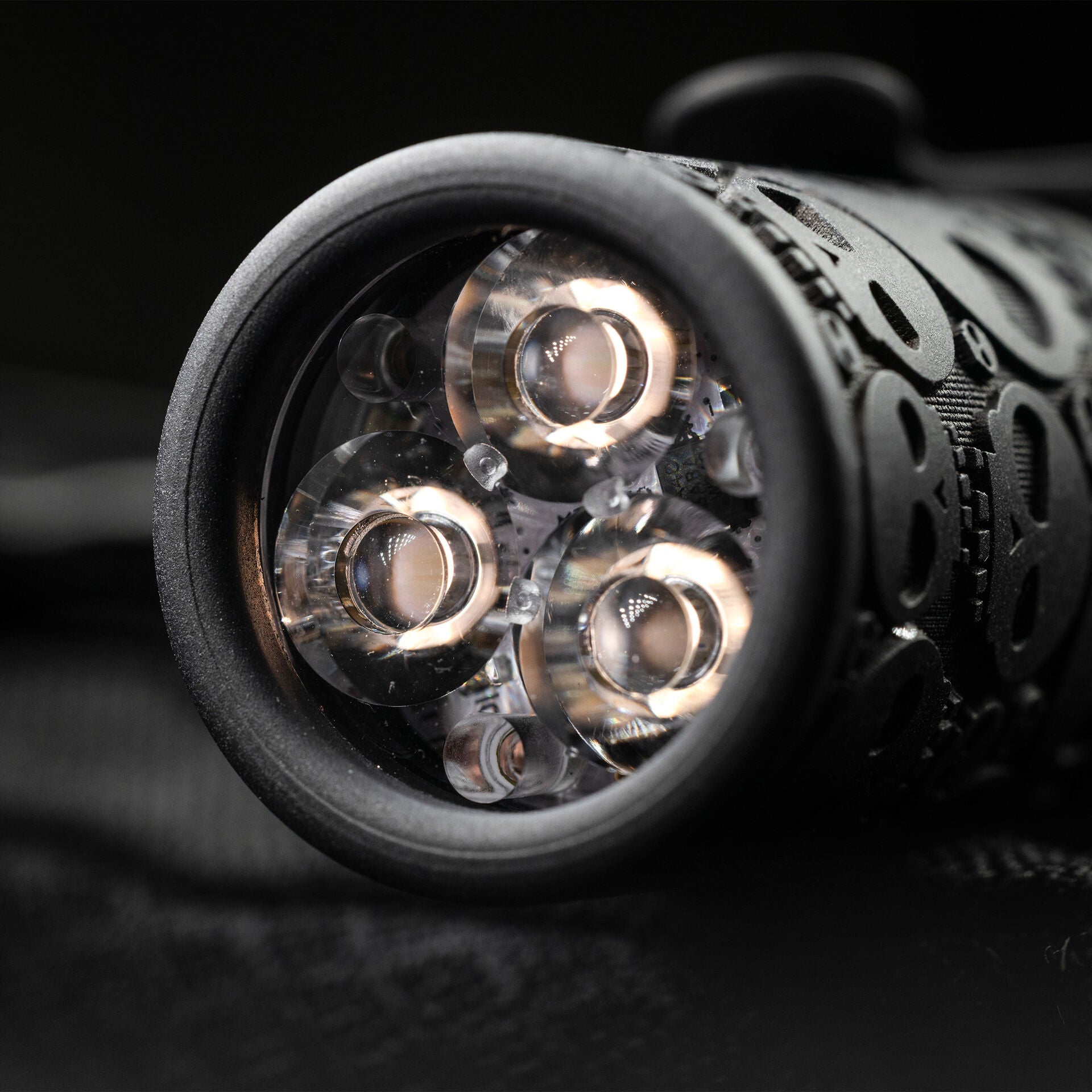

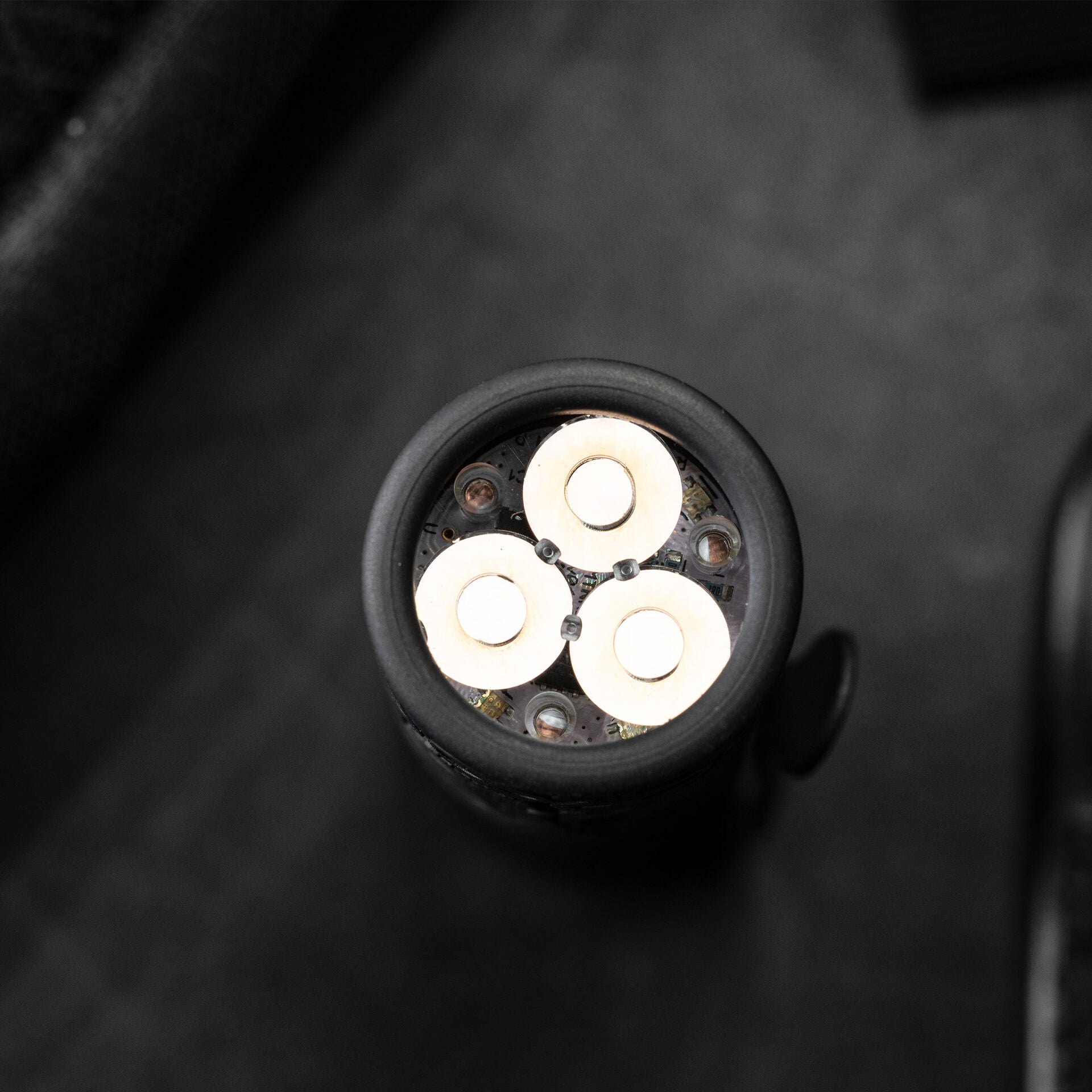

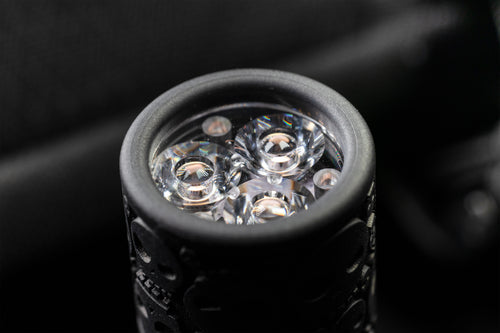

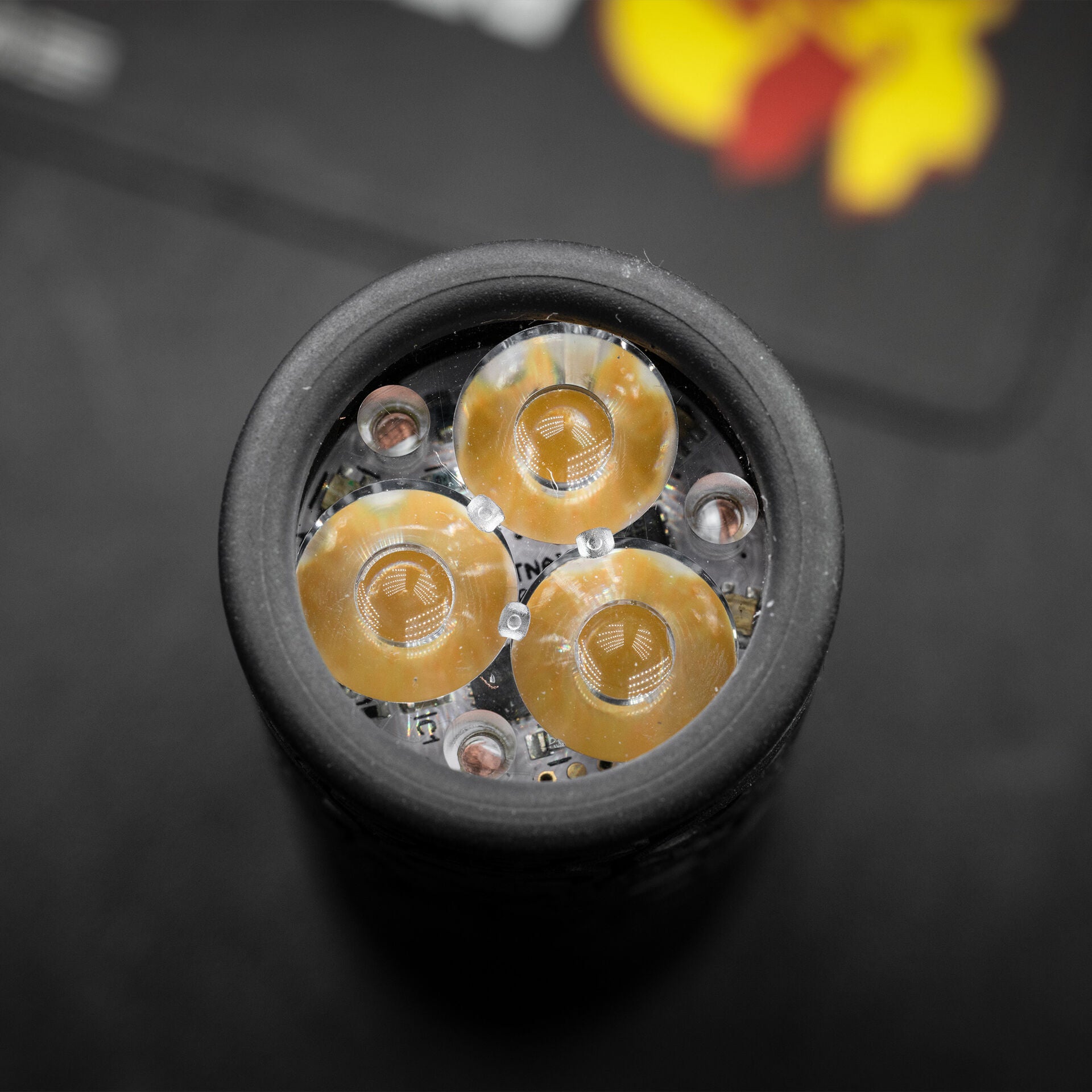

  • Triple Emitters w RGB Secondaries

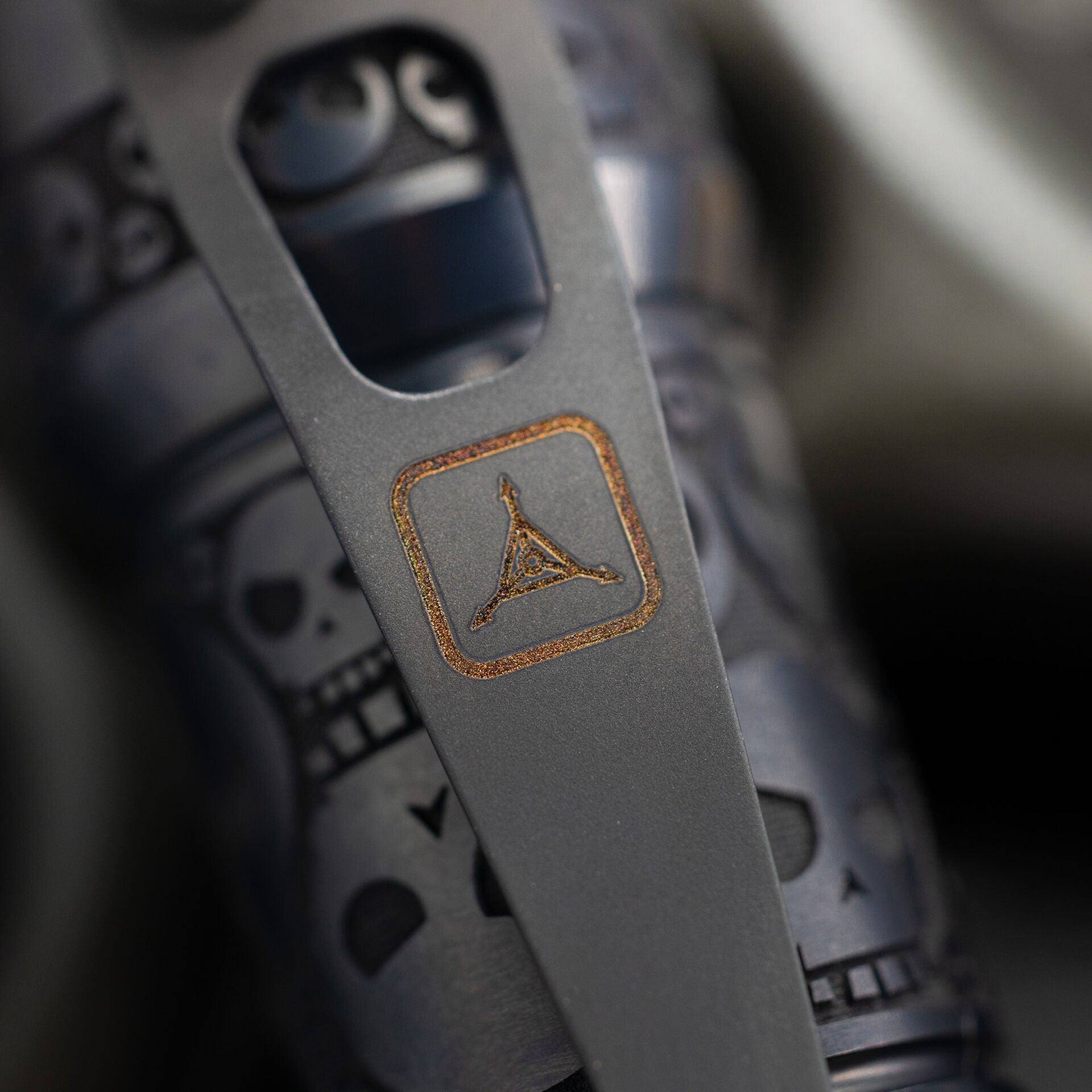

  • Laser Etched Titanium Body and Clip w Tumbled  Finish

  • 3 unique laser setups

  • total run time 30+ hours per light

  • 60 watt MOPA laser

  • Fallout TRD carbon based finish (Thermo Reactive Diffusion)

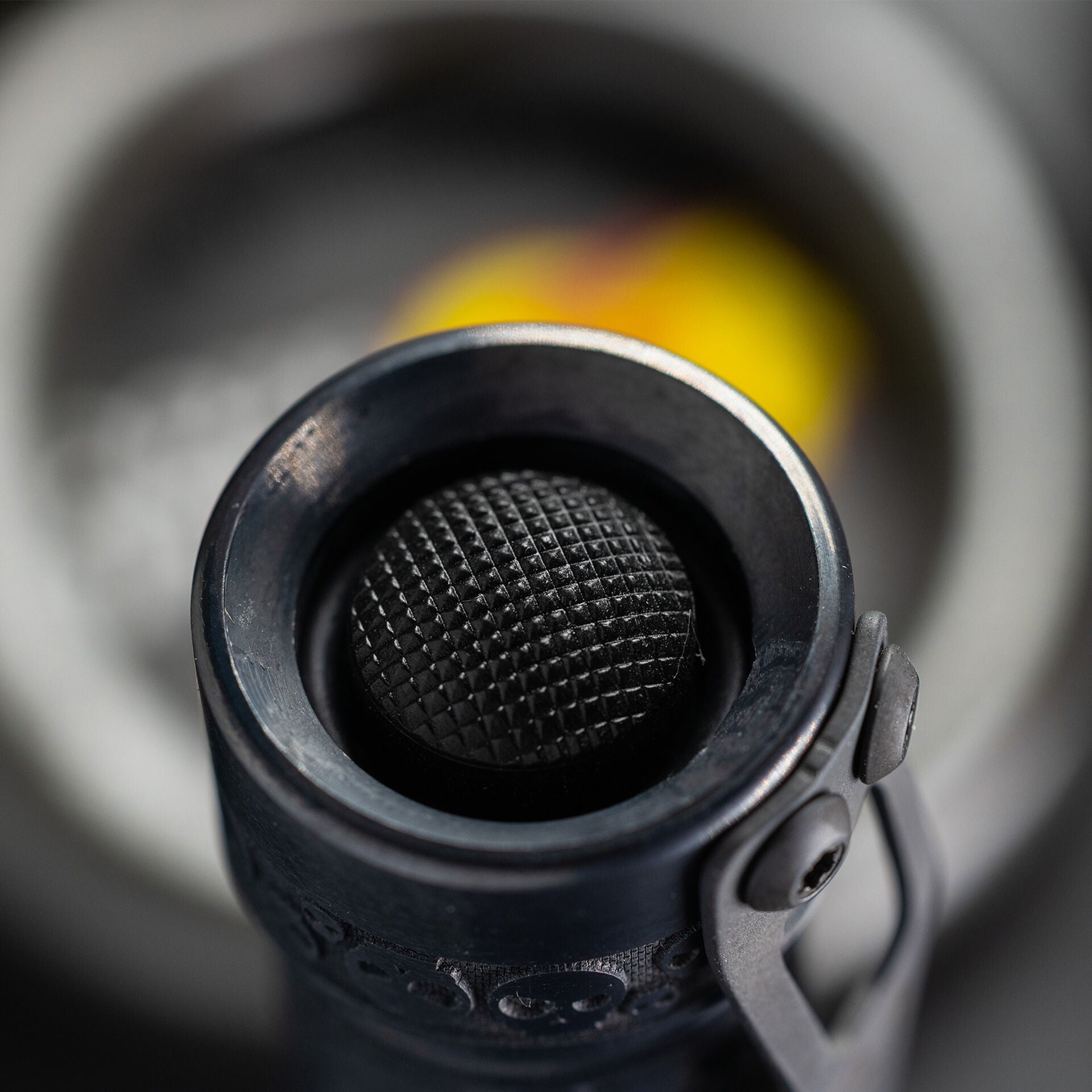

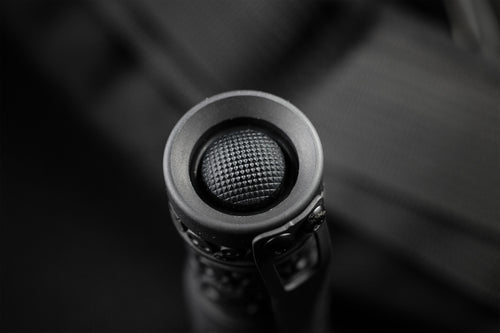

  • Forward Click Tail Cap Switch

  • High Tolerance American CNC Machining

  • High Impact Sapphire  Lenses

  • Copper Heat Sink

  • Weatherproof and Water Resistant

  • Tailstands


    PROGRAMMING

Quantum Dragon Mode Groups

  • * Group 1: Color, ML, 5%, 15%, 35%, 50%, 100%

  • * Group 2: Color, ML, 35%, 100%

  • * Group 3: ML, 5%, 15%, 35%, 50%, 100%

  • * Group 4: ML, 5%, 15%, 100%

  • * Group 5: ML, 15%, 100%

  • * Group 6: 5%, 15%, 35%, 50%, 100%

  • * Group 7: 15%, 100%

  • * Group 8: 15% - 50%

  • * Group 9: 100% Only

  • * Group 10: Color, 100%

  • * Group 11: 100%, Color

  • * Group 12: Color, 50%

  • * Group 13: 50%, Color

  • PROGRAMMING:

  • Configuration Options:

  • To enter configuration mode, quickly cycle the switch 12+ times until it starts to flash. Once it starts to flash,

  • you are in configuration mode. Once in configuration mode, the light will give a solid light and ramp down, if you

  • want to modify options 2-4 cycle switch during ramp to move to next option.

  • * Option 1 = Mode group, when light ramps down it will flash all 3 colors and then the group number in white light

  • followed by all 3 colors. To select the group flashed in white light cycle the switch in the next color cycle

  • after the group number you want to use is blinked out.

  • * Option 2 = Secondary color choice, when light ramps down it will blink twice to show its in the second option

  • and flash each color several times, cycle switch while the color you want to use is flashing.

  • * Option 3 = Memory on/off, when light ramps down it will blink three times to show you its in the third option

  • and flash red or green several times. Cycle the switch while flashing red if you want memory off and green if you

  • want memory on.

  • * Option 4 = Strobe option, when light ramps down it will blink four times to show its in the fourth option and

  • flash each color several times, cycle switch while flashing red for off, green if you want standard strobe and

  • blue for bicycle mode. To access these in normal use cycle switch rapidly three times and it will access either

  • strobe programmed when turned on.



Engineered, Manufactured and Made in the USA

Modes

  • Programmable Modes: See below



Material

  • Titanium Body

  • Titanium Pocket Clip

  • Copper Heat Sink



Dimensions

  • Length: 3.5 in

  • Bezel Diameter: .99 in

Weight

  • Including Batteries: 3. oz

Battery

  • (1) 18350 Flat Top

Features

  • Nichia 219a  4500K LED

  • Laser Etched Titanium Body and Clip w Tumbled  Finish

  • 3 unique laser setups

  • total run time 30+ hours per light

  • 60 watt MOPA laser

  • Fallout TRD carbon based finish (Thermo Reactive Diffusion)

  • Forward Click Tail Cap Switch

  • High Tolerance American CNC Machining

  • High Impact Sapphire  Lenses

  • Copper Heat Sink

  • Weatherproof and Water Resistant

  • Tailstands


    PROGRAMMING

  • Chimera Max for the single led engine

  • Mode Groups:

  • 1- Moonlight, 5%, 15%, 35%, 50%, 100%

  • 2- Moonlight, 5%, 15%, 35%, 100%

  • 3- Moonlight, 15%, 35%, 100%

  • 4- 5%, 15%, 35%, 50%, 100%

  • 5- 5%, 15%, 35%, 100%

  • 6- 5%, 35%, 100%

  • 7- 15%, 35%, 50%, 100%

  • 8- 15%, 50%, 100%

  • 9- 15%, 100%

  • 10- 50%

  • Configuration Options:

  • To enter configuration mode, quickly cycle the switch 10+ times until it starts to flash. Once it starts to flash,

  • you are in configuration mode. Once in configuration mode, the light will give a solid light and ramp down, if you

  • want to modify options 2-3 cycle switch during ramp to move to next option.

  • * Option 1 = Mode group, when light ramps down it will step down and then the group number will blink

  • followed by another step down. To select the group blinked cycle the switch in the step down cycle after

  • the group you want to use.

  • * Option = Memory on/off, when light ramps down it will flash low power and then high power, cycle switch while

  • flashing low if you want memory off and high if you want memory on.

  • * Option = Strobe option, when light ramps down it will flash 3 different power levels, cycle switch while

  • flashing low if you want strobe off, medium for bicycle mode and high for strobe mode. To access these in normal use cycle switch three times rapidly and it will access either strobe programmed when turned on.



Engineered, Manufactured and Made in the USA

Made in USA

Superior Engine

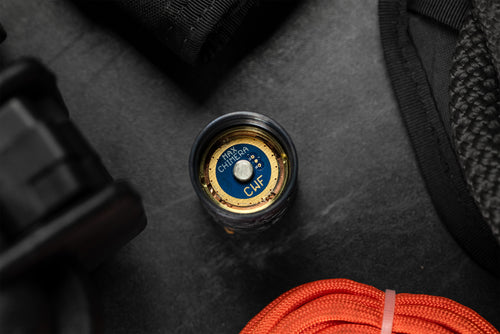

One of the most advanced drivers on the market, the fully programmable Quantum Dragon features battery monitoring, full thermal regulation, and advanced programming and memory capabilities.

Efficient

The protected microprocessor maximizes light output, resulting in a consistent level of light output throughout the battery’s life.

User Friendly

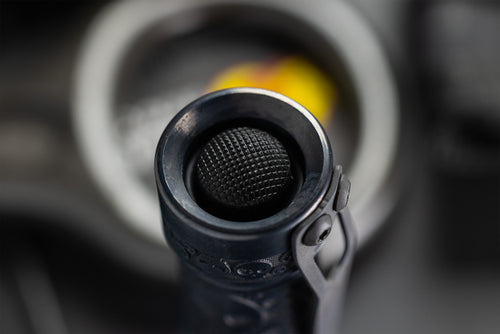

The forward click activation switch is easy to use and is ruggedly built to tolerate hard use.

Upgradable

Designed to be upgraded, you will always have access to the latest technology.

Batteries Included

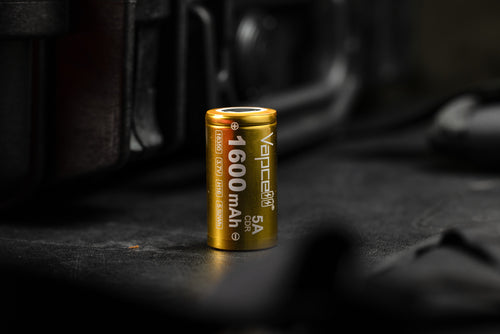

Flat top 18350 unprotected battery is included.

BEHIND THE SCENES WITH CWF CUSTOM LIGHTS

Founded by Charles Wiggens in 2014, CWF Custom Lights hit the ground running with his Dragon Driver. With 27 years experience as a mechanic and racer, he has a lifetime of modifying a vehicle's computer to get the highest performance possible. He brings this single minded approach to heirloom quality flashlights.

Behind the Scenes with Ti2 Design

Mike Bond is a product designer and CNC machinist with a background in marketing. After design school, he worked for some largely successful marketing companies until deciding to move to Hawaii to start a family. Through a unique series of events he began this journey after meeting the owner of a small CNC machine shop and a partnership was formed. Ti2 grew into their own shop and primarily focuses on their own brands, Ti2 Design and HiTex Gear.
