MaterialTitanium

Overview

Sometimes on the Pacific Rim, seismic activity makes the needle jump, or in this case the laser. Unintended movements in the laser means that each titanium Peanut will have a unique fractured topo pattern never to be duplicated… hopefully.

The CWF Peanut TAD Edition stands out with the latest technology with an elegant, minimalist form. Equipped with the Quantum Dragon driver, this flashlight offers an array of customizable features. Users can program secondary RGB LEDs, adjust power levels, and even enjoy a triple tap strobe function.

The Peanut ensures safety and durability with thermal regulation and voltage protection. A solid copper pill enclosing the light engine helps dissipate heat and a protected  microprocessor maximizes light output, resulting in a consistent level of light output throughout the battery’s life. An upgradable driver assures you can update and customize your carry without changing your illumination platform.

Powered by an 18350 flat top battery, this compact yet powerful device incorporates all its electronics on a single board, effectively saving length and maximizing efficiency. With dimensions of just 0.99" in diameter and 2.85" in length, the Peanut is the perfect companion for those seeking a reliable, feature-packed flashlight in a compact form. The result is a true EDC sized light with unparalleled programmability, refined but rugged form, and a staggering 1500+ lumens out of a single 18350 cell.

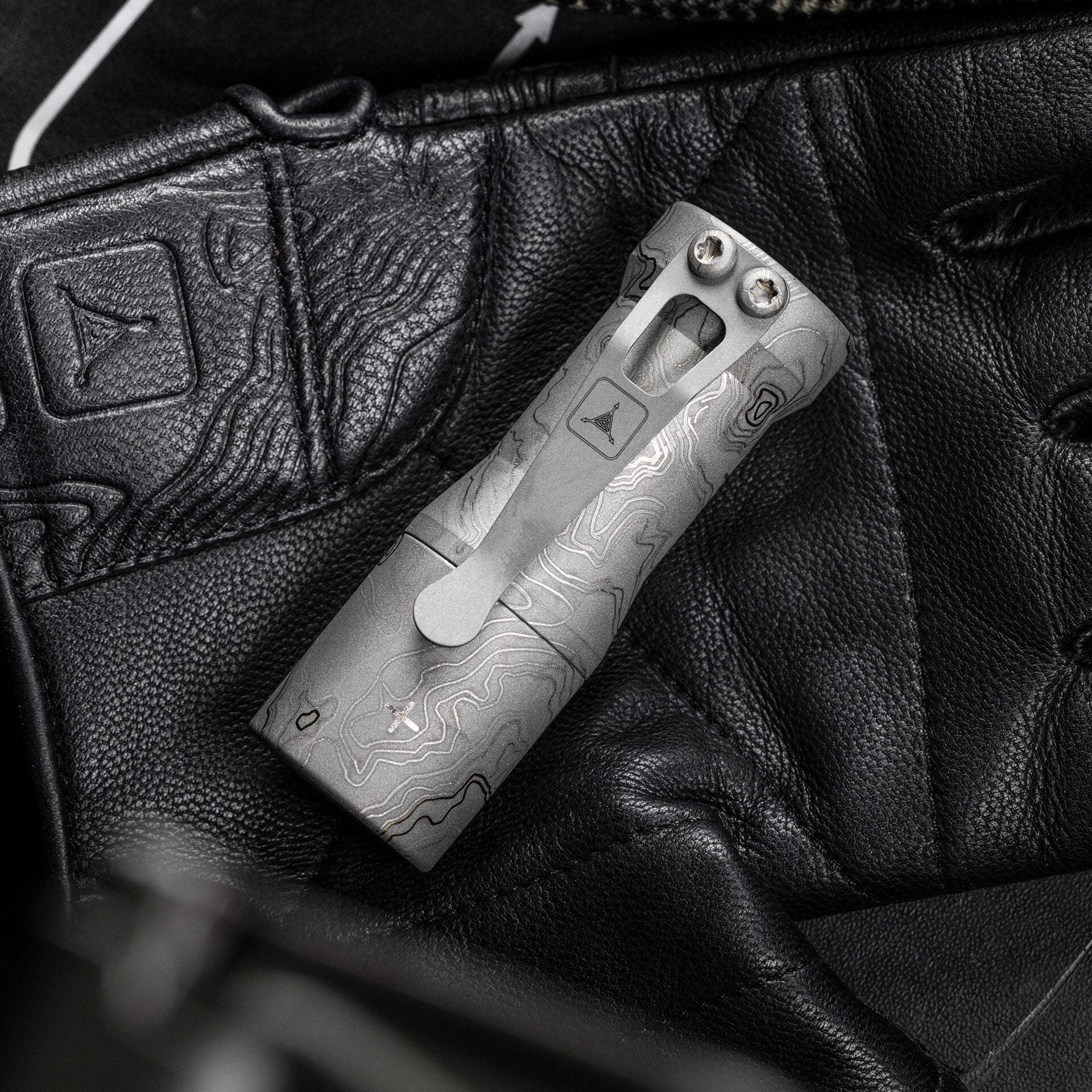

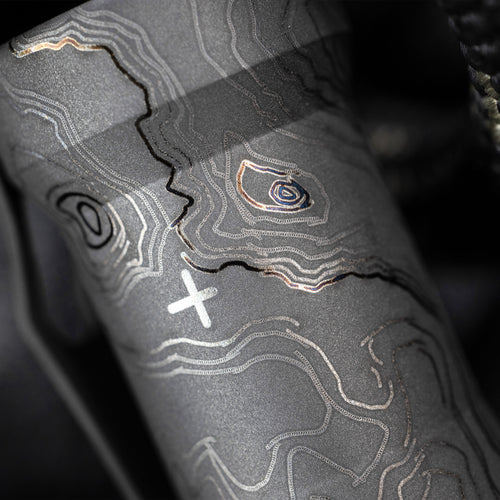

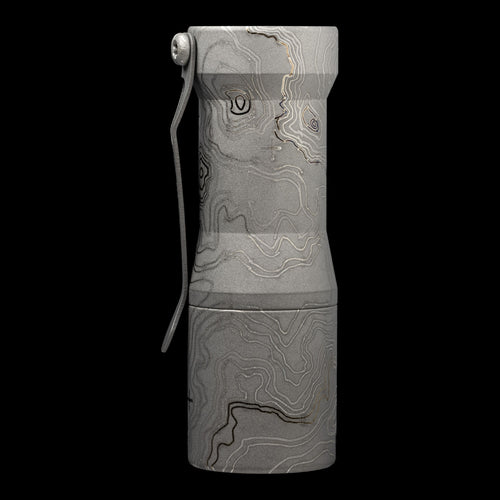

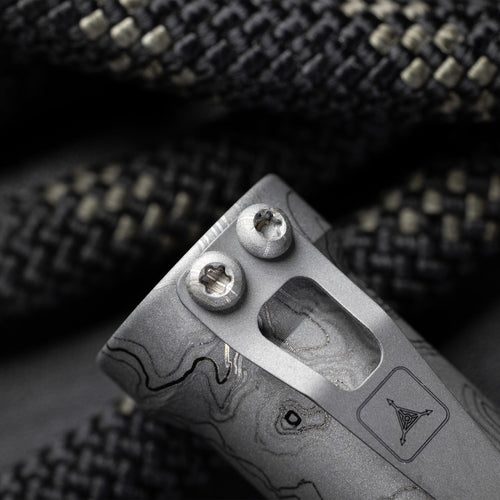

Turned from a solid titanium round bar, the CWF Peanut TAD Edition features a flawless tumbled finish that showcases the minimalist design cues of this light perfectly. Our “Fractured Topo” pattern is applied by laser in a time intensive process. This combination is not just visually striking, but durable as well. Keeping in line with the subtle design cues, our logo is lasered onto the titanium clip.

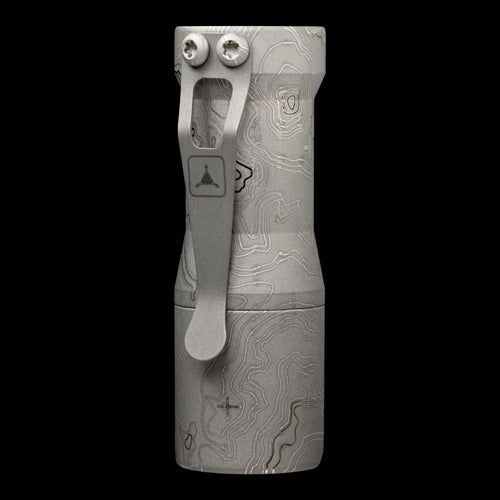

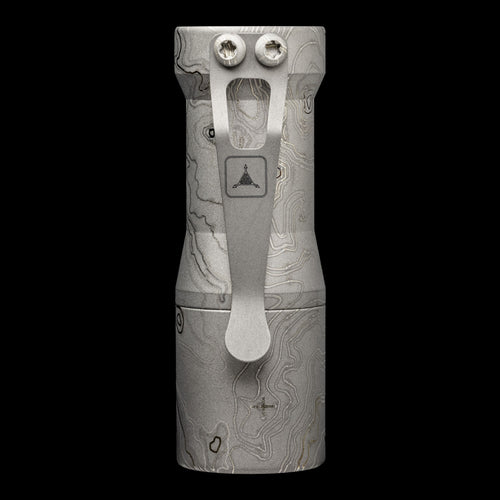

All CWF Peanuts  come with a titanium stonewashed deep carry pocket clip and stainless screws for comfortable carry and superior strength. Included is a flat top 18350 rechargeable battery.

** Other than the cosmetic fractured topo, these titanium Peanuts function perfectly. **

Due to the nature of custom items, slight variations may occur.

Specifications

Modes

  • Programmable Modes: See below



Material

  • Titanium Body

  • Titanium Pocket Clip

  • Copper Heat Sink



Dimensions

  • Length: 2.85 in  (  cm)

  • Bezel Diameter: .99 in  ( cm)

Weight

  • Including Batteries: 3. oz ( 85.04g)

Battery

  • (1) 18350 Flat Top

Features

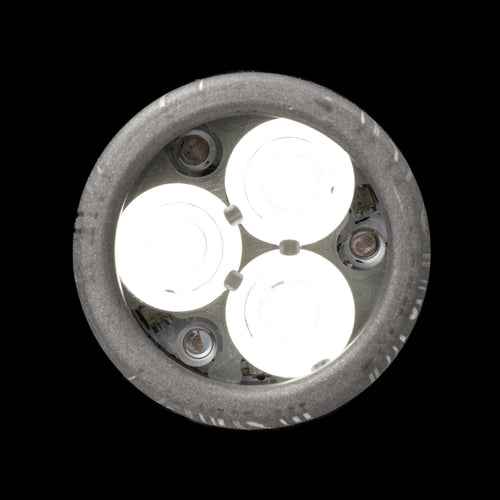

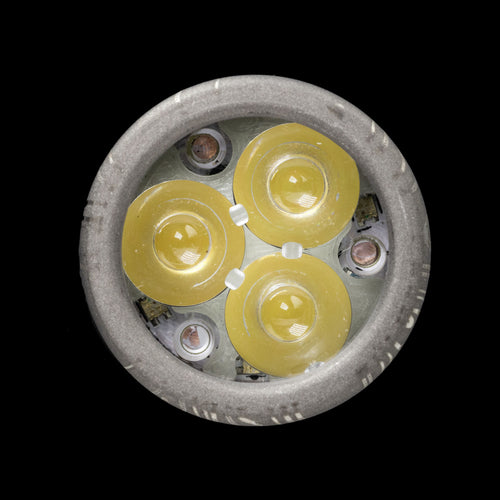

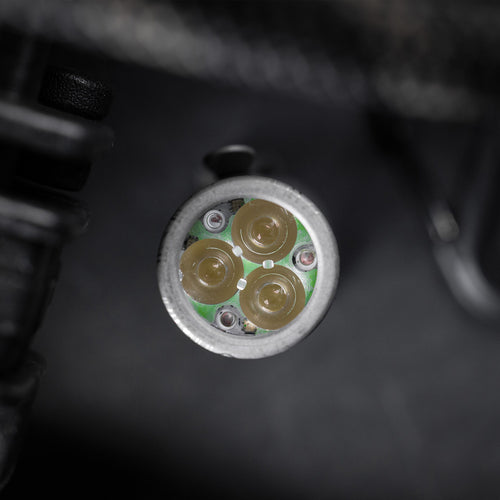

  • Nichia 219c  5000K LED

  • Unique “Fractured Topo” pattern Laser Applied

  • Laser Etched Titanium Body and Clip w Tumbled  Finish

  • Forward Click Tail Cap Switch

  • High Tolerance American CNC Machining

  • High Impact Sapphire  Lenses

  • Copper Heat Sink

  • Weatherproof and Water Resistant

  • Tailstands


    Quantum Dragon Mode Groups

  • * Group 1: Color, ML, 5%, 15%, 35%, 50%, 100%

  • * Group 2: Color, ML, 35%, 100%

  • * Group 3: ML, 5%, 15%, 35%, 50%, 100%

  • * Group 4: ML, 5%, 15%, 100%

  • * Group 5: ML, 15%, 100%

  • * Group 6: 5%, 15%, 35%, 50%, 100%

  • * Group 7: 15%, 100%

  • * Group 8: 15% - 50%

  • * Group 9: 100% Only

  • * Group 10: Color, 100%

  • * Group 11: 100%, Color

  • * Group 12: Color, 50%

  • * Group 13: 50%, Color


PROGRAMMING:

Configuration Options:

To enter configuration mode, quickly cycle the switch 12+ times until it starts to flash. Once it starts to flash,

you are in configuration mode. Once in configuration mode, the light will give a solid light and ramp down, if you

want to modify options 2-4 cycle switch during ramp to move to next option.

* Option 1 = Mode group, when light ramps down it will flash all 3 colors and then the group number in white light

followed by all 3 colors. To select the group flashed in white light cycle the switch in the next color cycle

after the group number you want to use is blinked out.

* Option 2 = Secondary color choice, when light ramps down it will blink twice to show its in the second option

and flash each color several times, cycle switch while the color you want to use is flashing.

* Option 3 = Memory on/off, when light ramps down it will blink three times to show you its in the third option

and flash red or green several times. Cycle the switch while flashing red if you want memory off and green if you

want memory on.

* Option 4 = Strobe option, when light ramps down it will blink four times to show its in the fourth option and

flash each color several times, cycle switch while flashing red for off, green if you want standard strobe and

blue for bicycle mode. To access these in normal use cycle switch rapidly three times and it will access either

strobe programmed when turned on.



Engineered, Manufactured and Made in the USA

Made in USA

SUPERIOR ENGINE

One of the most advanced drivers on the market, the fully programmable Quantum Dragon features battery monitoring, full thermal regulation, and advanced programming and memory capabilities.

EFFICIENT

The protected microprocessor maximizes light output, resulting in a consistent level of light output throughout the battery’s life.

USER FRIENDLY

The forward click activation switch is easy to use and is ruggedly built to tolerate hard use.

UPGRADABLE

Designed to be upgraded, you will always have access to the latest technology.
