CWF Mini Turbo Aluminum Topo TAD Edition

Long Shot
Add to cart ⌃
  • CWF Mini Turbo Aluminum Topo TAD Edition
  • CWF Mini Turbo Aluminum Topo TAD Edition
  • CWF Mini Turbo Aluminum Topo TAD Edition
  • CWF Mini Turbo Aluminum Topo TAD Edition
  • CWF Mini Turbo Aluminum Topo TAD Edition
  • CWF Mini Turbo Aluminum Topo TAD Edition
  • CWF Mini Turbo Aluminum Topo TAD Edition
  • CWF Mini Turbo Aluminum Topo TAD Edition
  • CWF Mini Turbo Aluminum Topo TAD Edition
  • CWF Mini Turbo Aluminum Topo TAD Edition
  • CWF Mini Turbo Aluminum Topo TAD Edition
  • CWF Mini Turbo Aluminum Topo TAD Edition
  • CWF Mini Turbo Aluminum Topo TAD Edition
1 13
$400.00
$400.00 $400.00
0% off Sold out
Color

Overview

The Mini Turbo takes CWF performance to the next level with a larger head and an oversized engine, the biggest CWF has offered yet. The engine extends all the way to the outer edge, creating a robust heat sink for superior thermal dissipation and sustained performance.

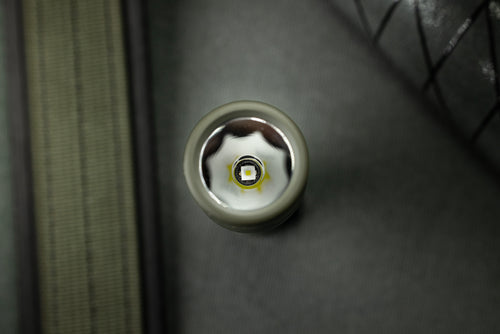

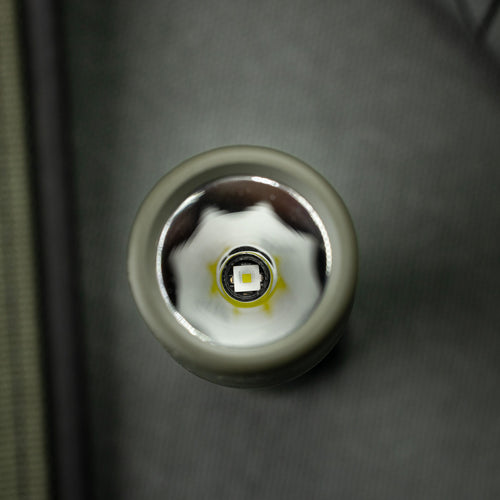

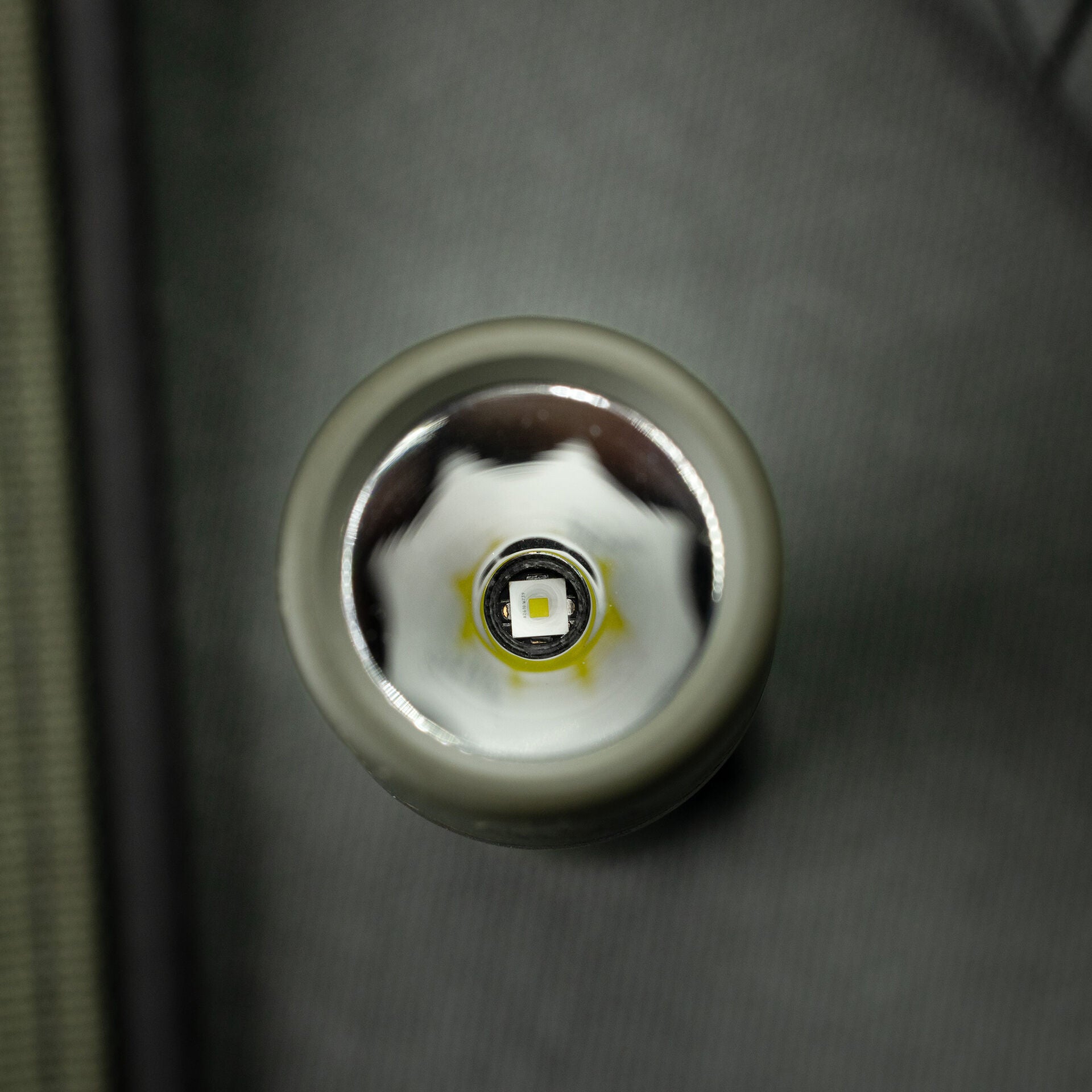

At the heart of the Mini Turbo is a deep, smooth reflector paired with an Osram CSLNM1 LED, delivering an impressive 55,000 candela in a pocket-sized design. This combination makes the Mini Turbo a true powerhouse for throw and intensity, all while remaining compact enough for everyday carry.

The light runs on the CWF Chimera firmware, offering full programmability so you can customize output levels, modes, and functions to suit your needs.

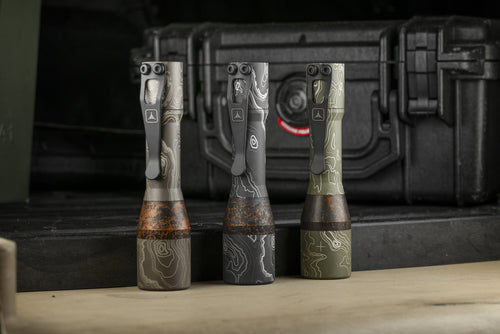

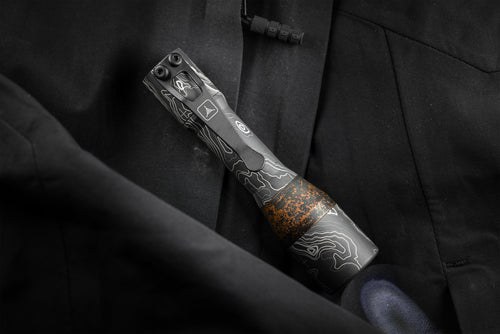

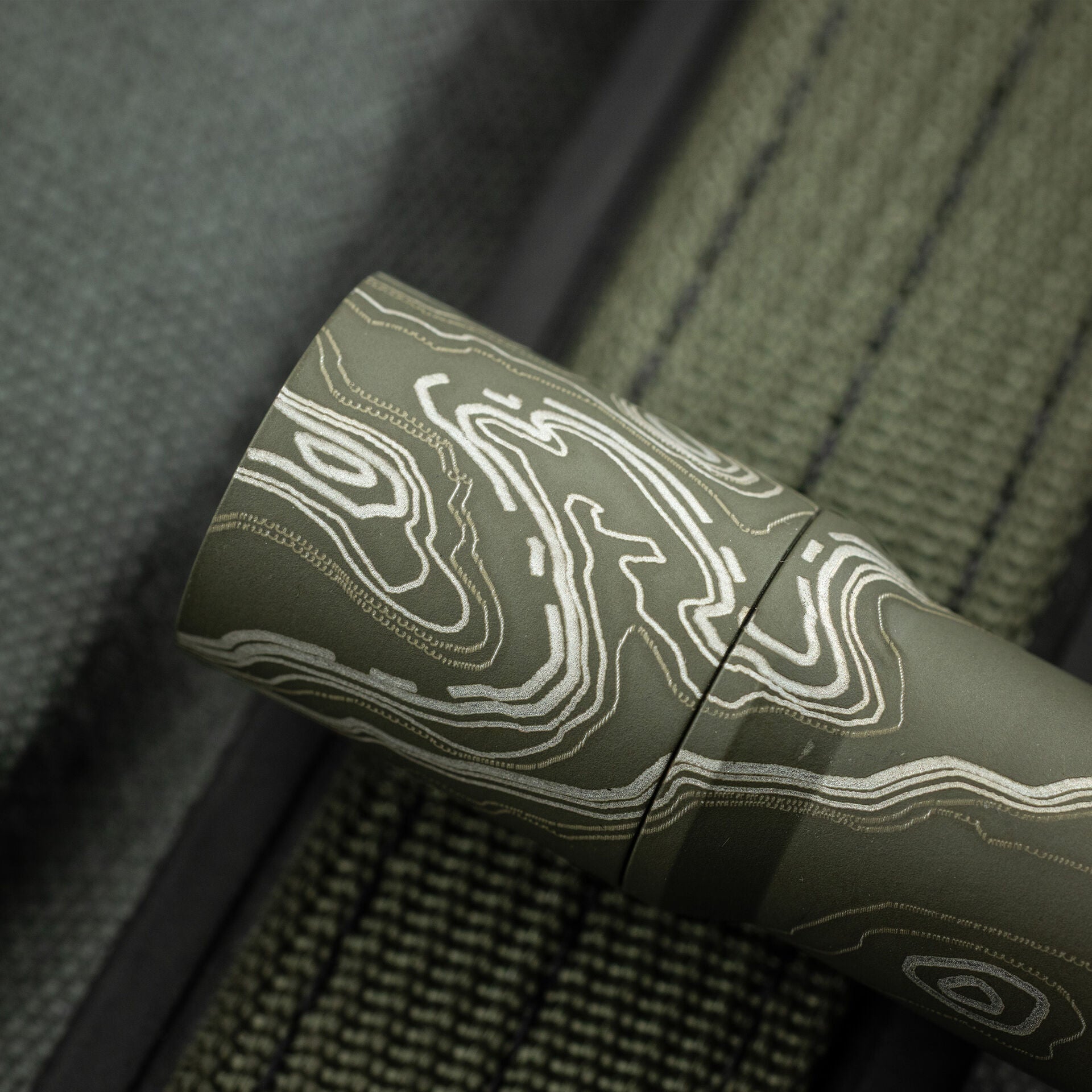

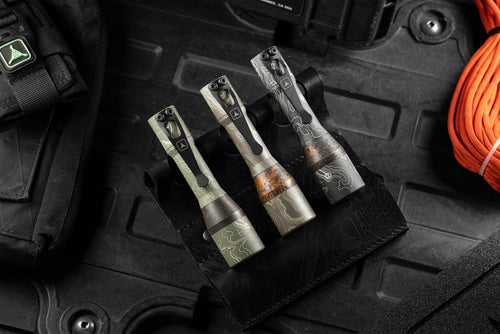

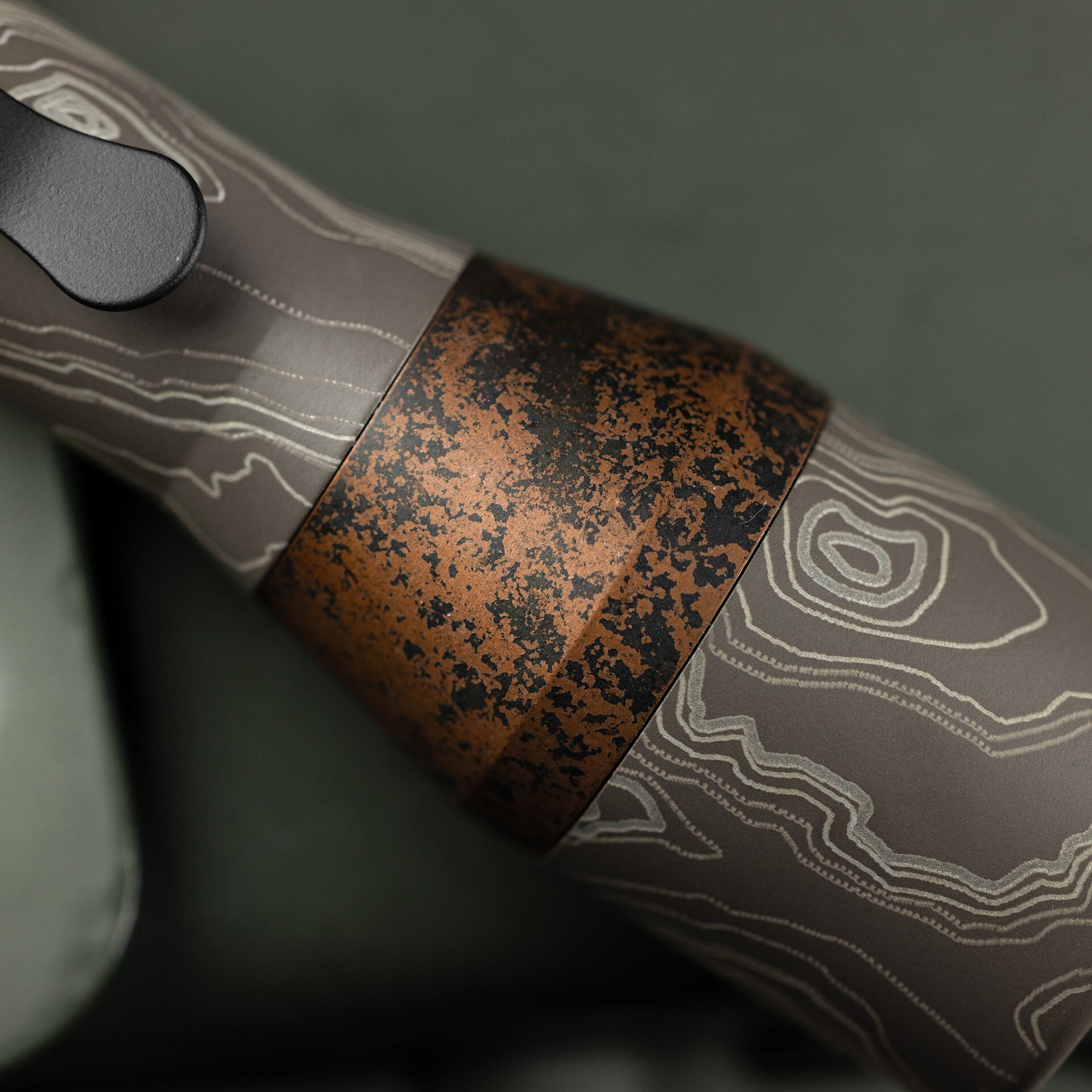

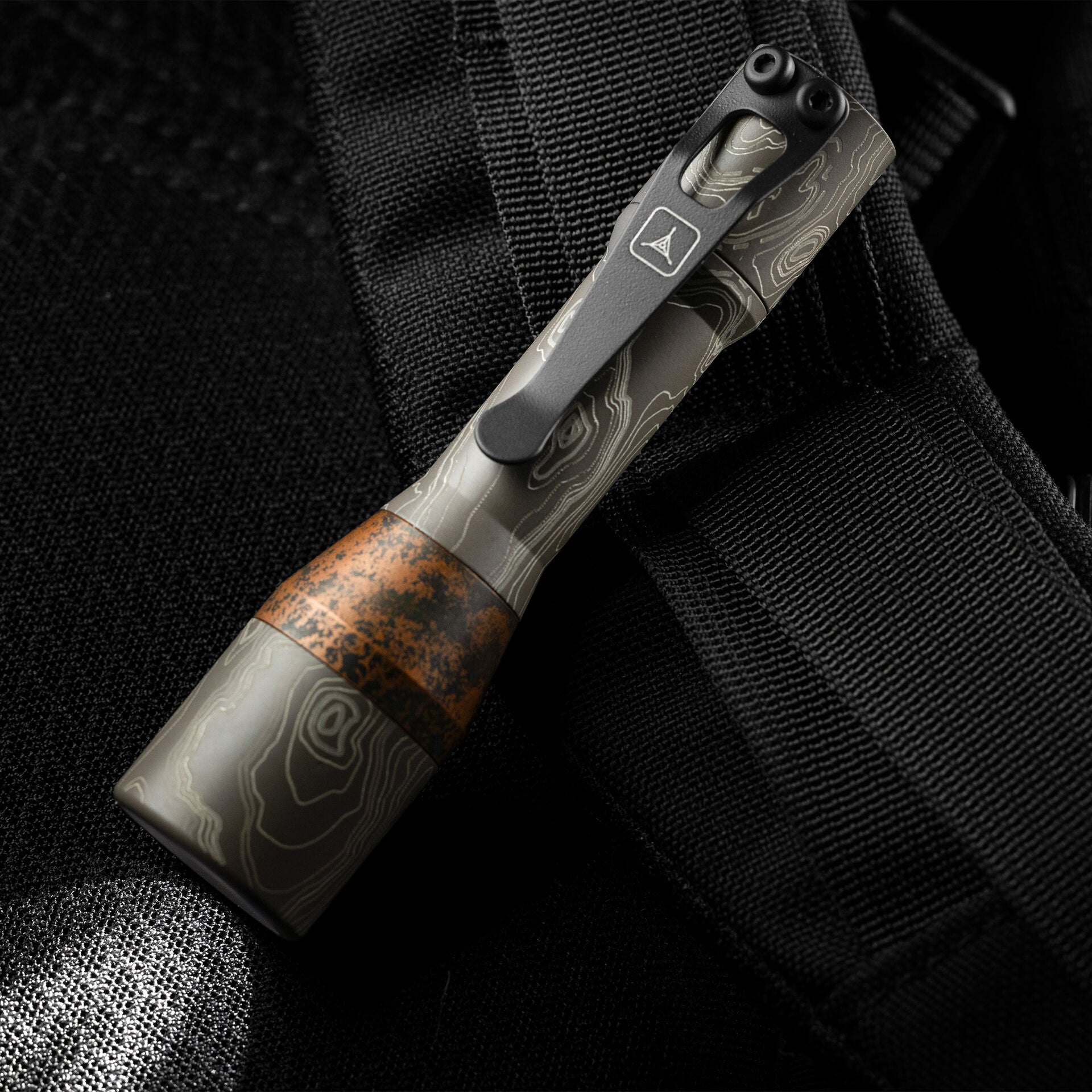

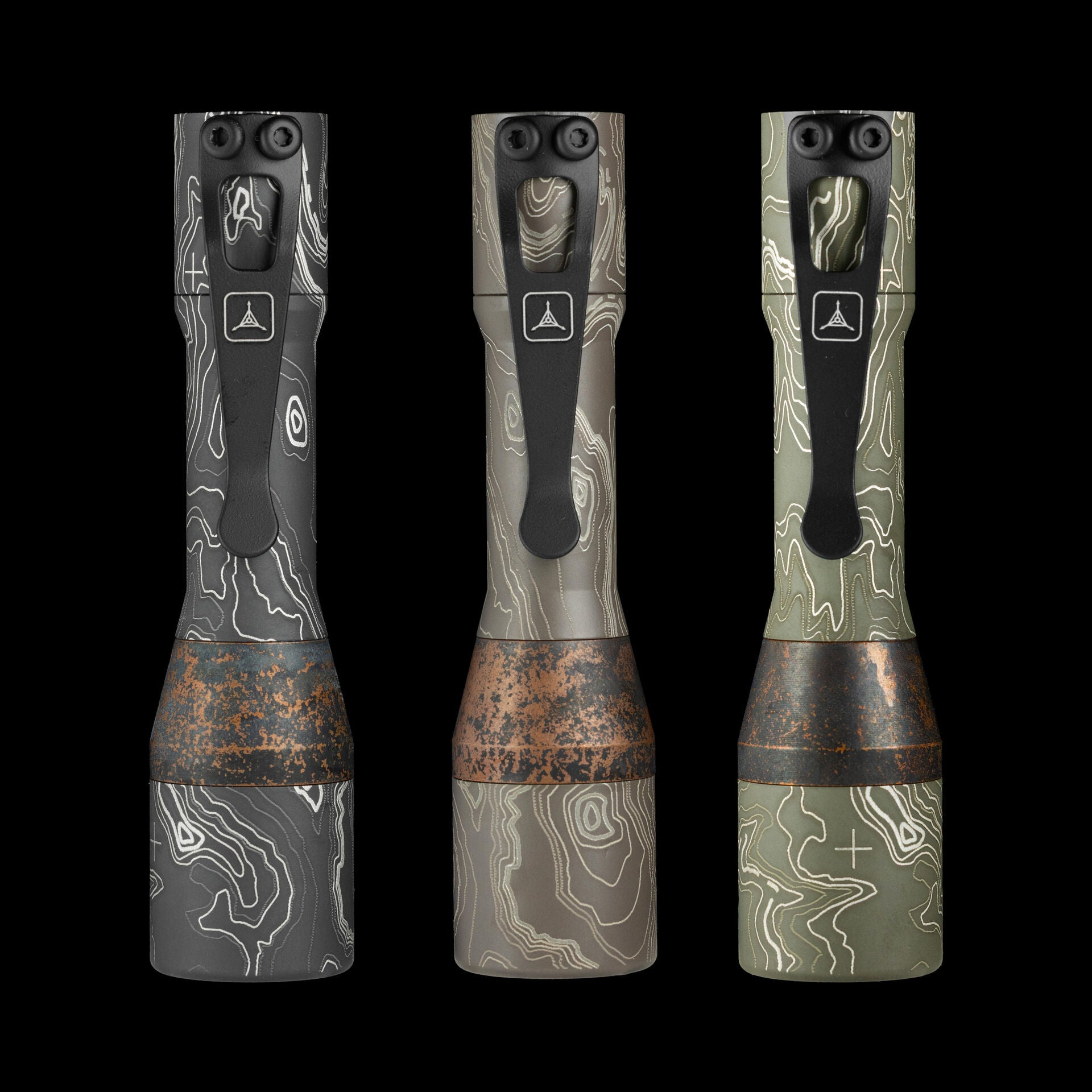

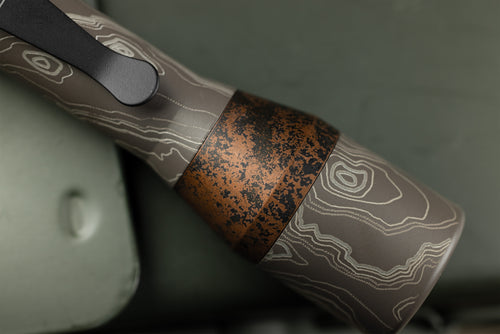

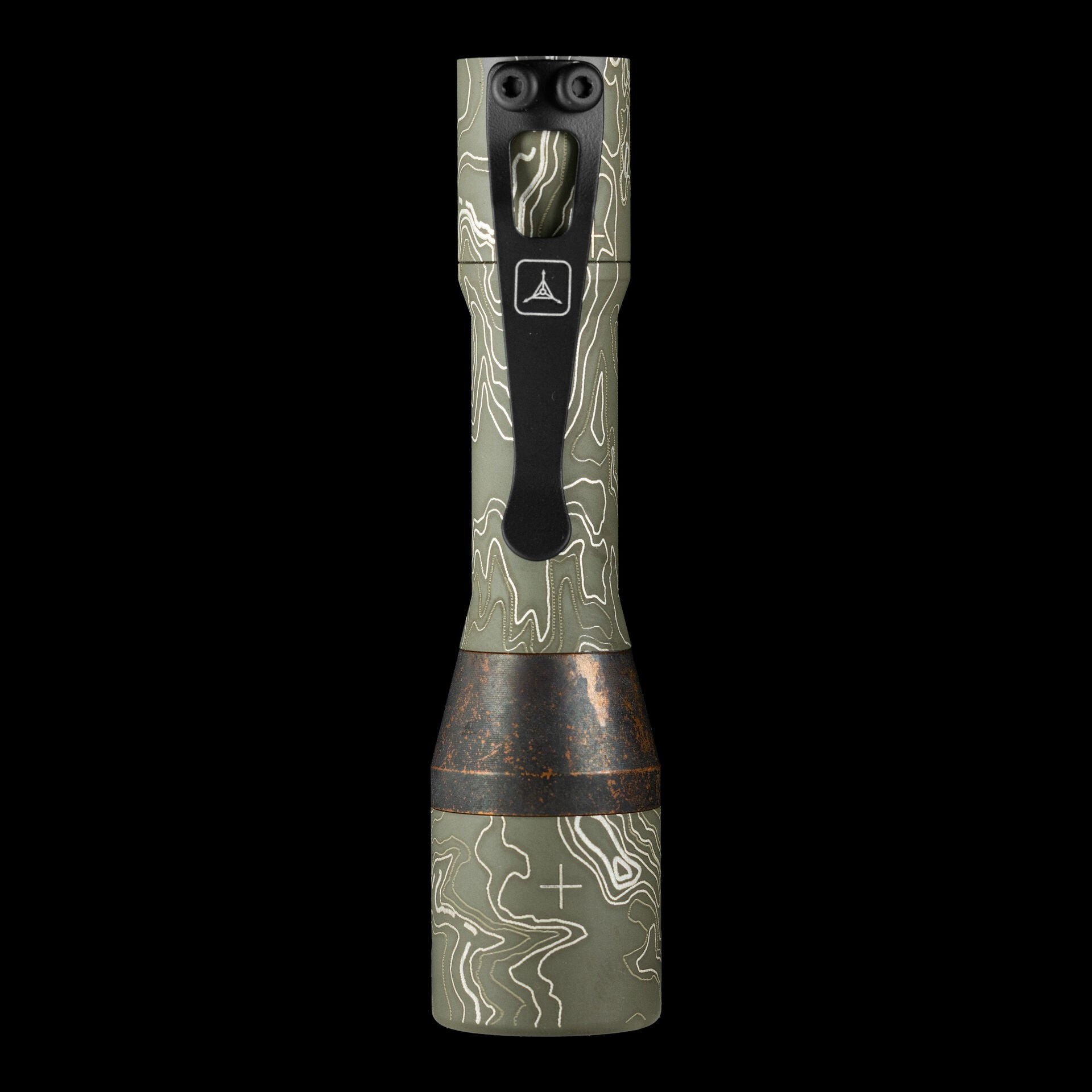

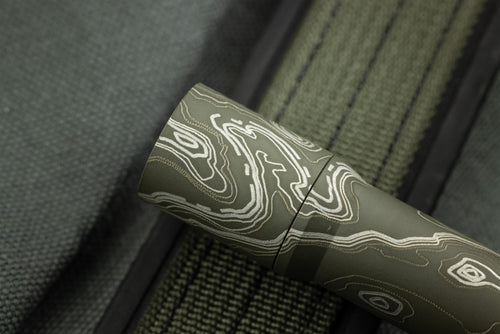

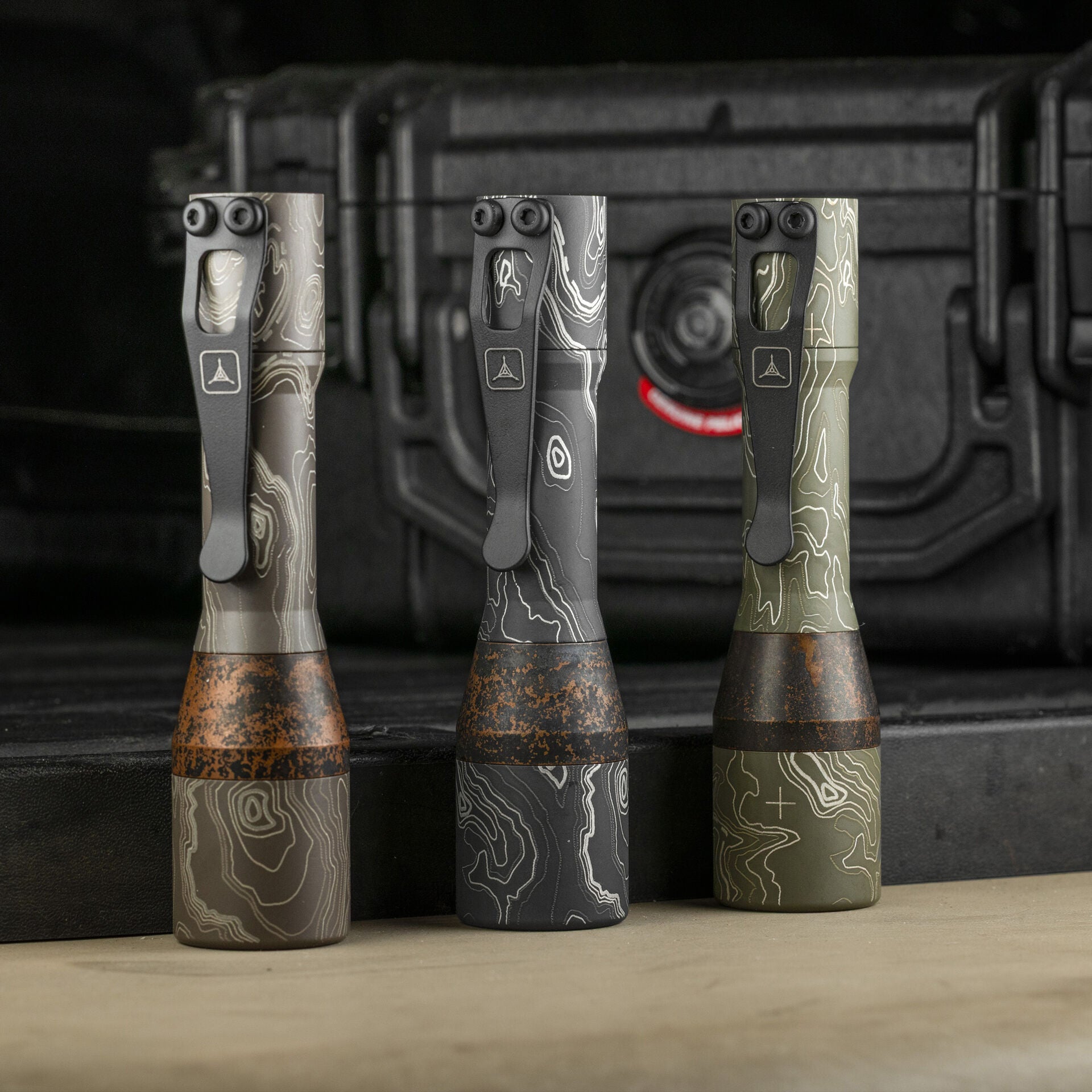

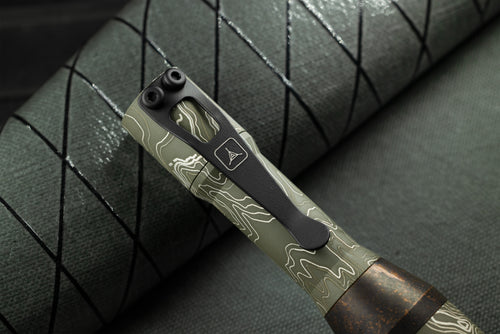

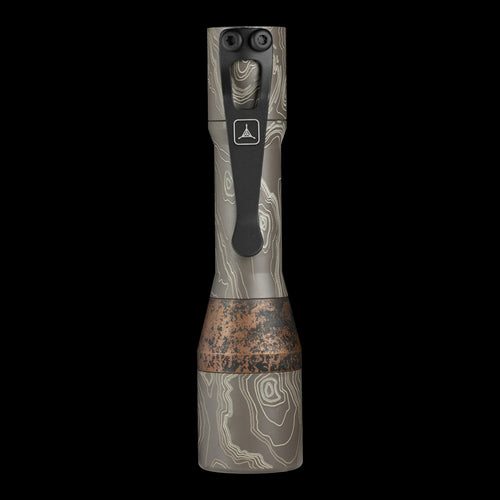

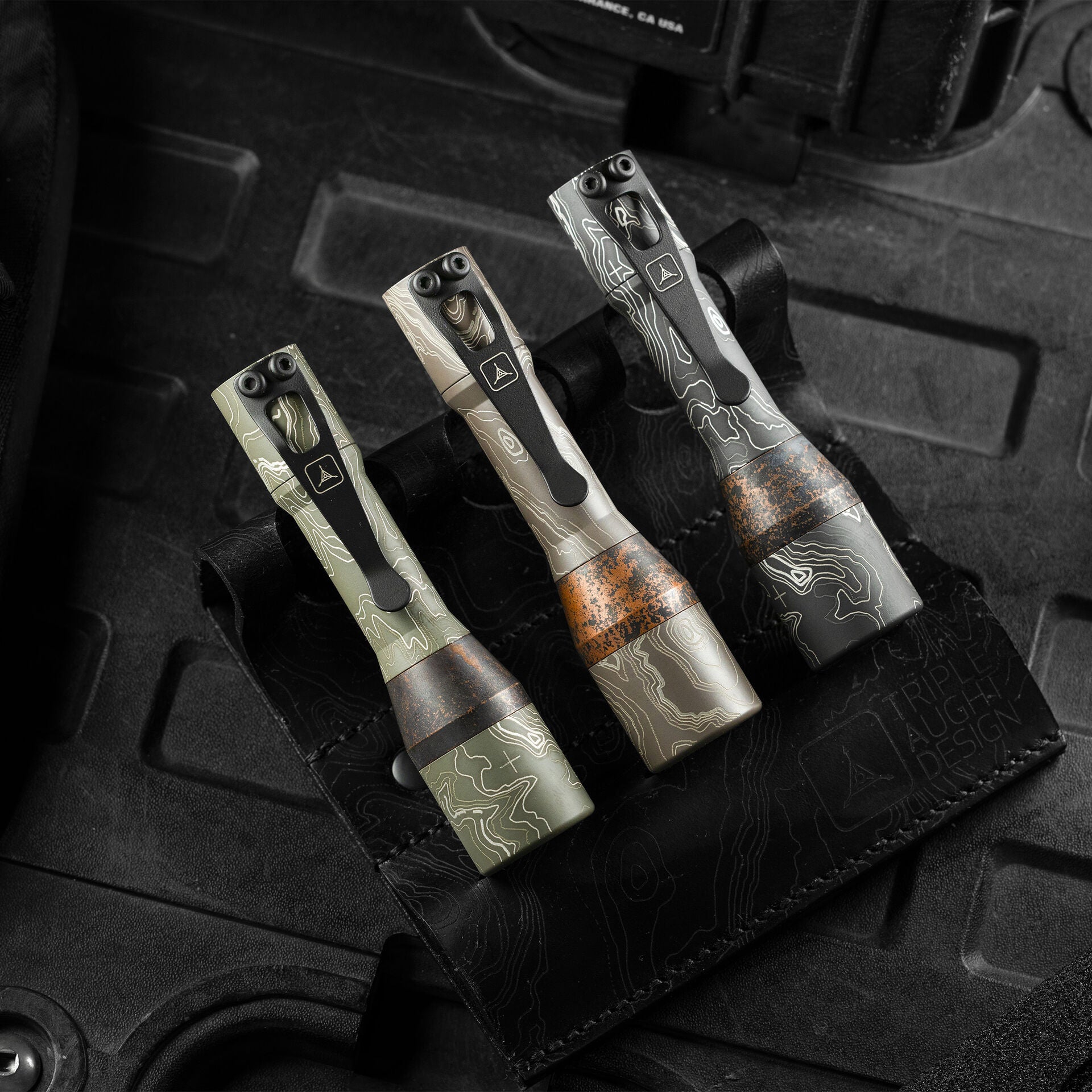

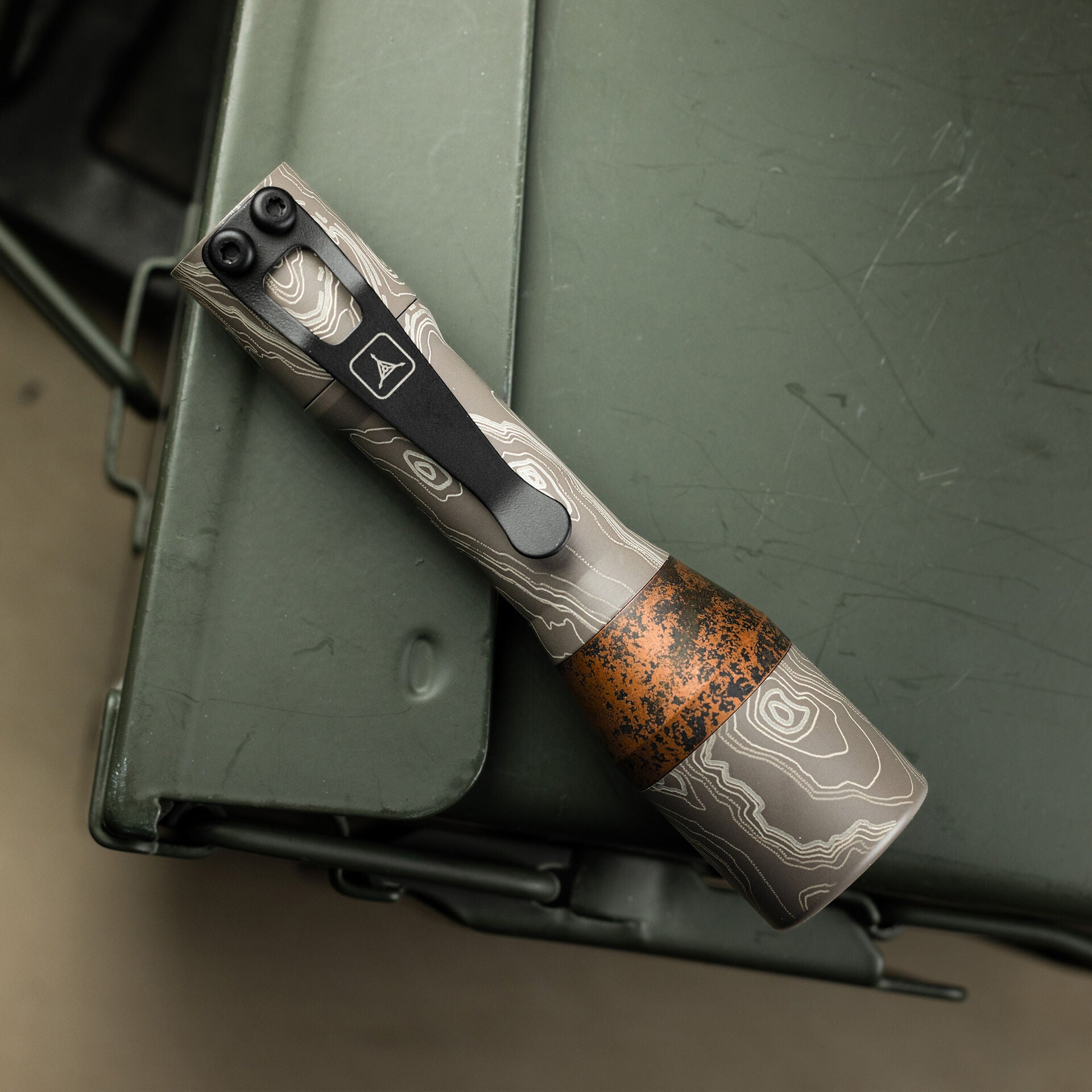

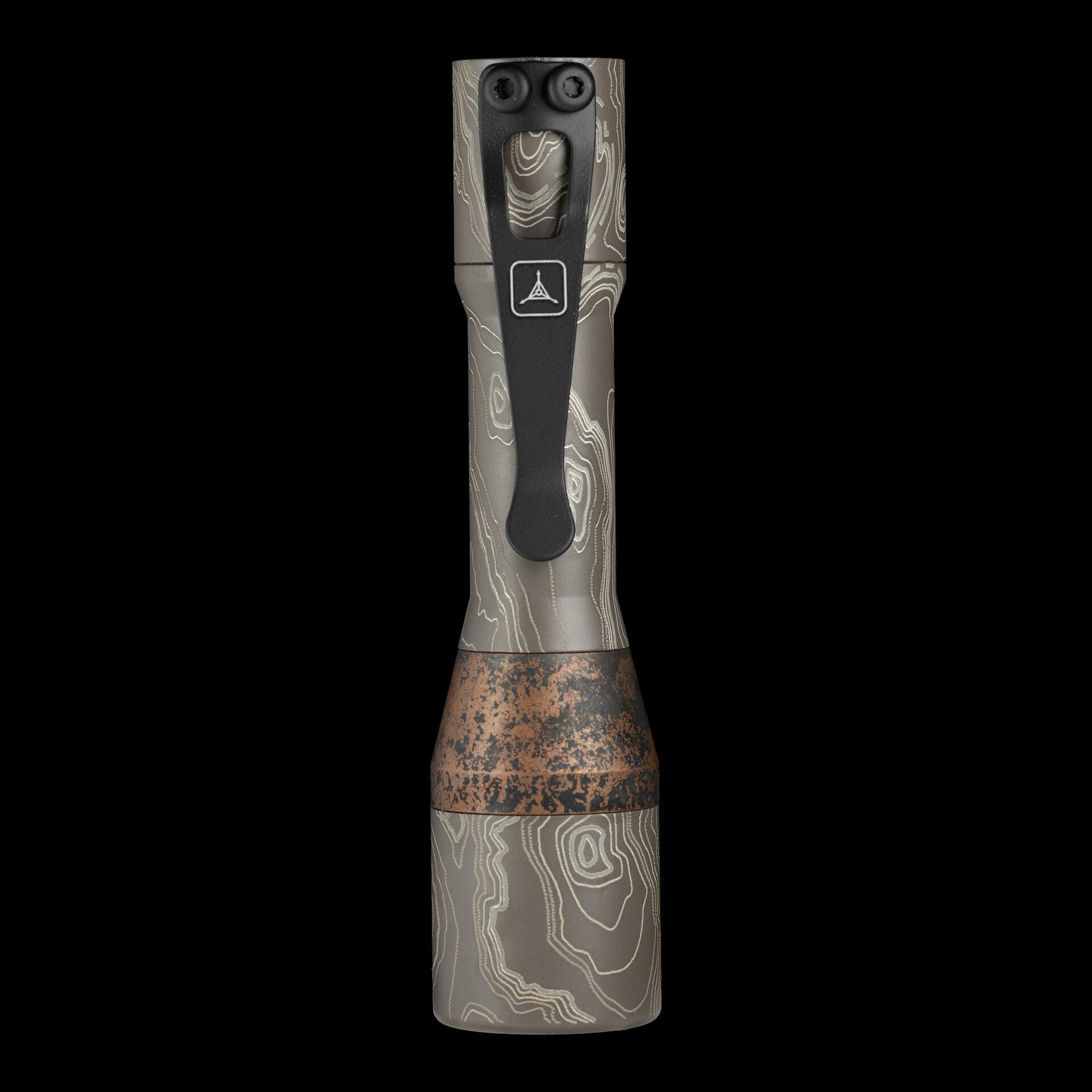

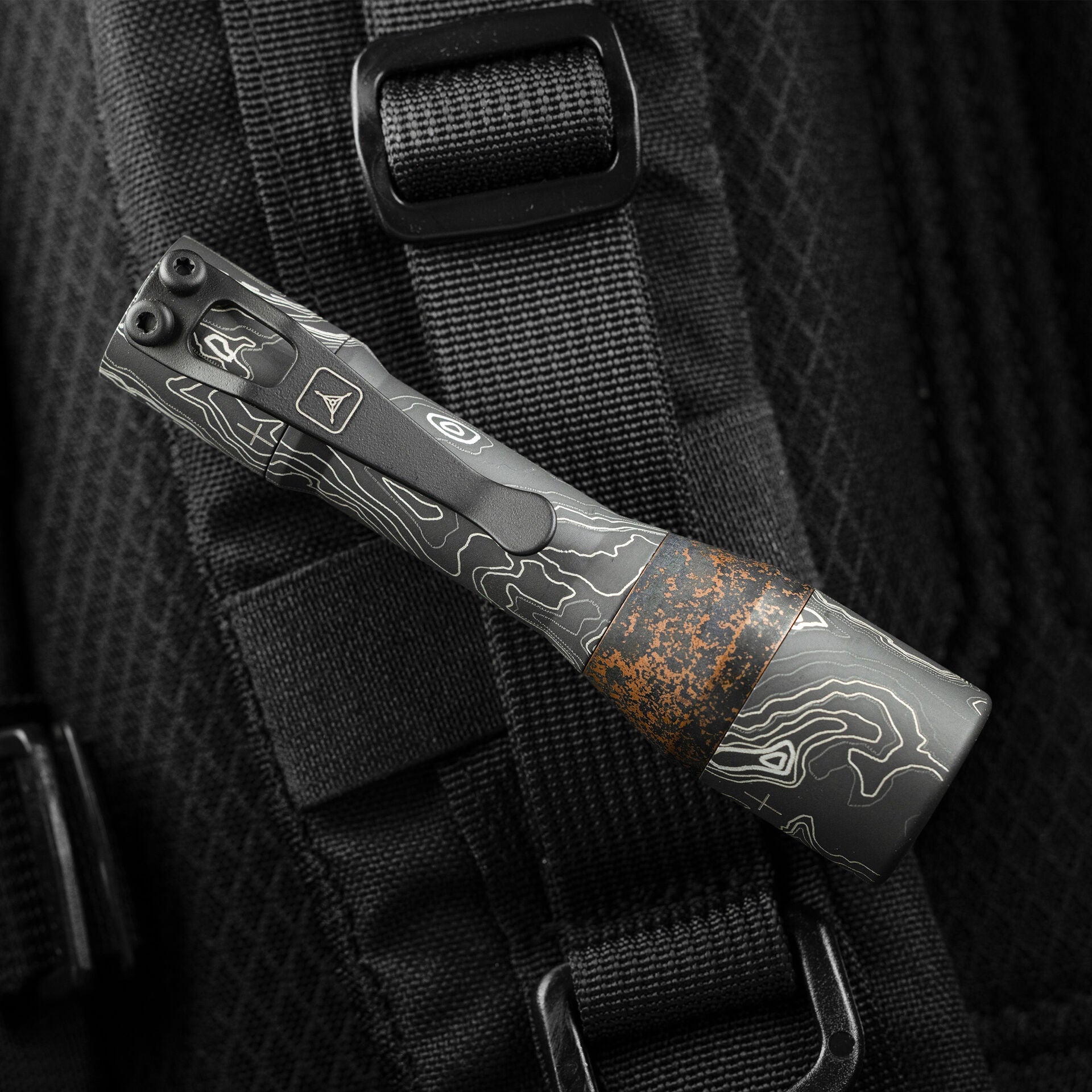

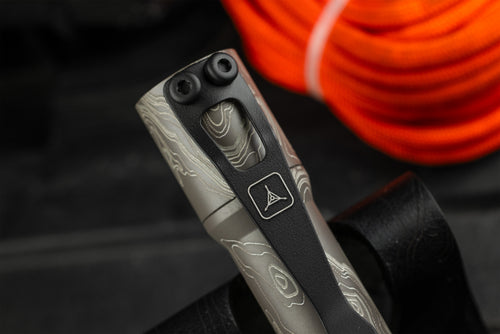

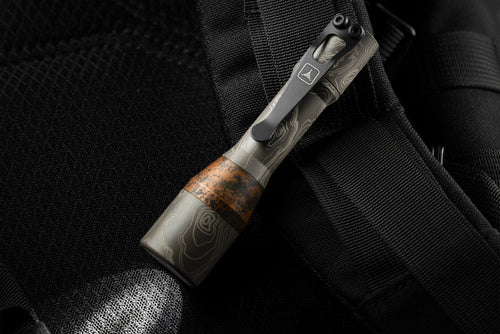

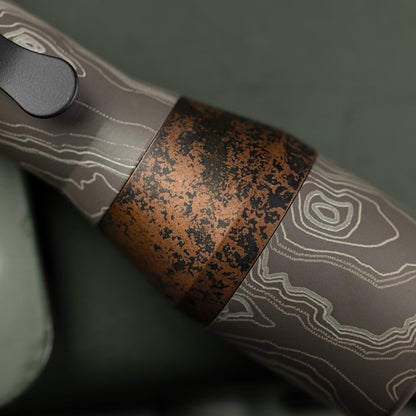

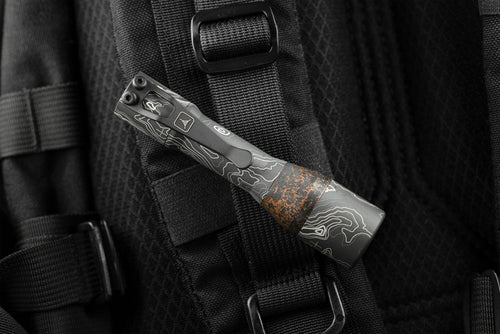

These TAD Edition lights feature aluminum bodies and head with our signature laser-applied topo pattern over custom Cerakote finishes. Each light is equipped with a copper heat sink that has undergone a forced patina process. To complete the aesthetic, the titanium pocket clip is finished in black Cerakote and features our logo.

Due to the nature of custom items, slight variations may occur.

By placing an order with Triple Aught Design, you are verifying that you are over 18 years of age and are aware of all local, state and federal laws regarding the possession of, or the carrying of this product. Triple Aught Design shall be held blameless for any infraction of laws made by the purchaser.

Specifications

Modes

Default Mode :  Moonlight, 5%, 15%, 35%, 50%, 100%

Programmable Modes: See below

Material

Aluminum  Body

Titanium Pocket Clip

Copper Heat Sink
Cerakote Finish

Dimensions

Length: 4.1 in

Bezel Diameter: .99 in

Body Diameter .74

Weight

Including Batteries: 2.8 oz

Battery

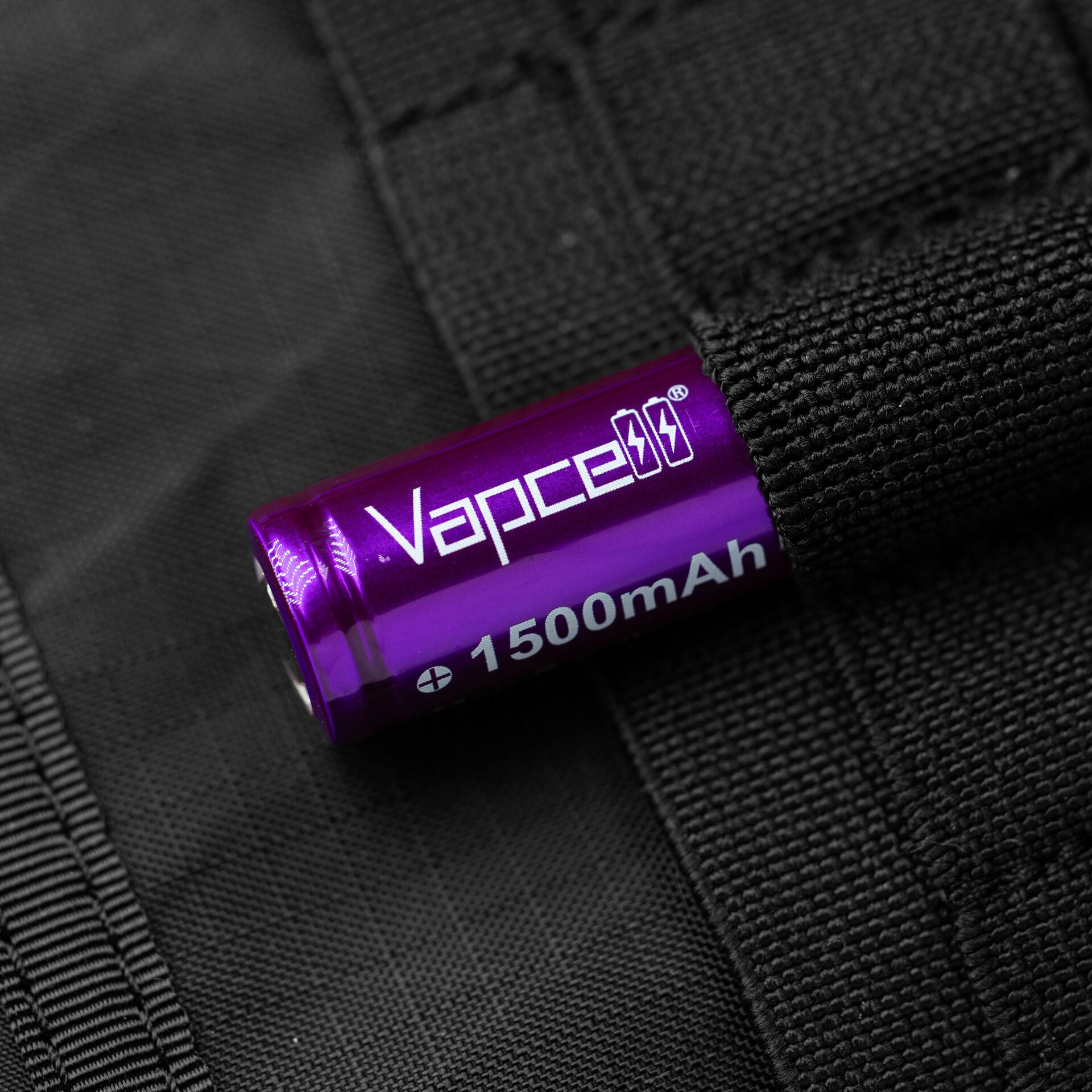

(1) Button top 14500

Features

Osram CSLNM1 LED

Laser Etched Titanium Clip w Logo

Aluminum Body and Head w Custom Cerakote Colorways

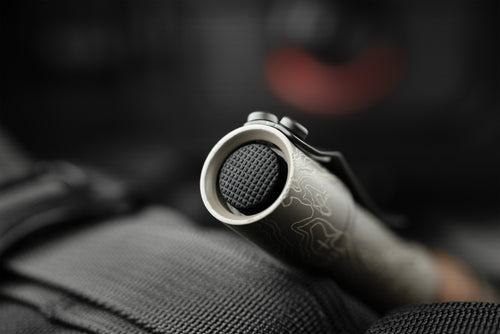

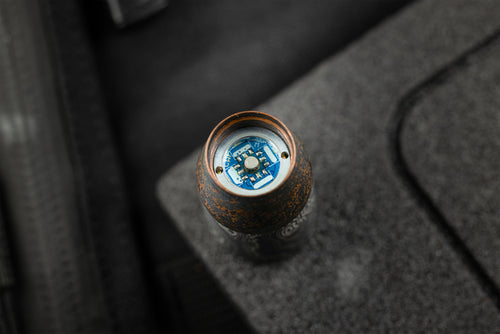

Reverse Click Tail Cap Switch

Copper Heat Sink w Forced Patina

High Tolerance American CNC Machining

High Impact Sapphire  Lenses

Default Light Mode , 6 Levels

Weatherproof and Water Resistant

Tailstands

Modes

Default Mode :  Moonlight, 5%, 15%, 35%, 50%, 100%

Programmable Modes: See below

Mode Groups:

1- Moonlight, 5%, 15%, 35%, 50%, 100%           Default

2- Moonlight, 15%, 50%, 100%

3- 5%, 15%, 35%, 100%

4- 15%, 100%

5- 5%, 15%, 35%, 50%, 100%

6- 50%

Configuration Options:

To enter configuration mode, quickly turn off the light 15+ times until it starts to flash. Once it starts to flash, you are in configuration mode.

Once in configuration mode, the light will give a solid flash between 1 and 5 times. The number of solid flashes indicates the option number to be changed. To select/change the option turn the light off and back on during the strobing flashes that immediately follow the solid flashes. When you choose option 1 it will start to flash 1-8 times, turn off and back on after the number of the group you want comes up. When setting the temperature control the light will go from programming to turbo, turn the light off when it reaches the temperature you desire.

1. Mode Group Select.

2. Memory Toggle.

3. Mode Order Toggle.

4. Temperature Calibration Mode.

5. Reversing Toggle.

Reversing options(1/2second press) as follows:

Turbo--->Strobe--->Batt Check (1-8 with 8 being full) ---> Bike Indicator Strobe



Engineered, Manufactured and Made in the USA

Made in USA

Features

  • Osram CSLNM1 LED
  • Laser Etched Titanium Clip w Logo
  • Aluminum Body and Head w Custom Cerakote Colorways
  • Reverse Click Tail Cap Switch
  • Copper Heat Sink w Forced Patina
  • High Tolerance American CNC Machining
  • High Impact Sapphire  Lenses
  • Default Light Mode , 6 Levels
  • Weatherproof and Water Resistant
  • Tailstands

Superior Engine

One of the most advanced drivers on the market, the fully programmable Chimera features battery monitoring, full thermal regulation, and advanced programming and memory capabilities.

Efficient

The protected microprocessor maximizes light output, resulting in a consistent level of light output throughout the battery’s life.

User Friendly

The reverse click activation switch is easy to use and is ruggedly built to tolerate hard use.

Upgradable

Designed to be upgraded, you will always have access to the latest technology.

Behind the Scenes with CWF Custom Lights

Founded by Charles Wiggins in 2014, CWF Custom Lights hit the ground running with his Dragon Driver. With 27 years experience as a mechanic and racer, he has a lifetime of modifying a vehicle's computer to get the highest performance possible. He brings this single minded approach to heirloom quality flashlights.
