Barrel Mod 10-1L Prototype Aluminum TAD Edition

Perfect Illumination
Skip to product information
1 of 7
Regular price $565.00
Regular price $565.00 Sale price $565.00
Sale Sold out
Shipping calculated at checkout.
Color: OD Green / Orange
Variation: Topo
Sign up to be notified of restocks.

Restock Request


Sign up to be notified if Barrel Mod 10-1L Prototype Aluminum TAD Edition is restocked in .


We've received your request and will notify you when the selected item is in stock.

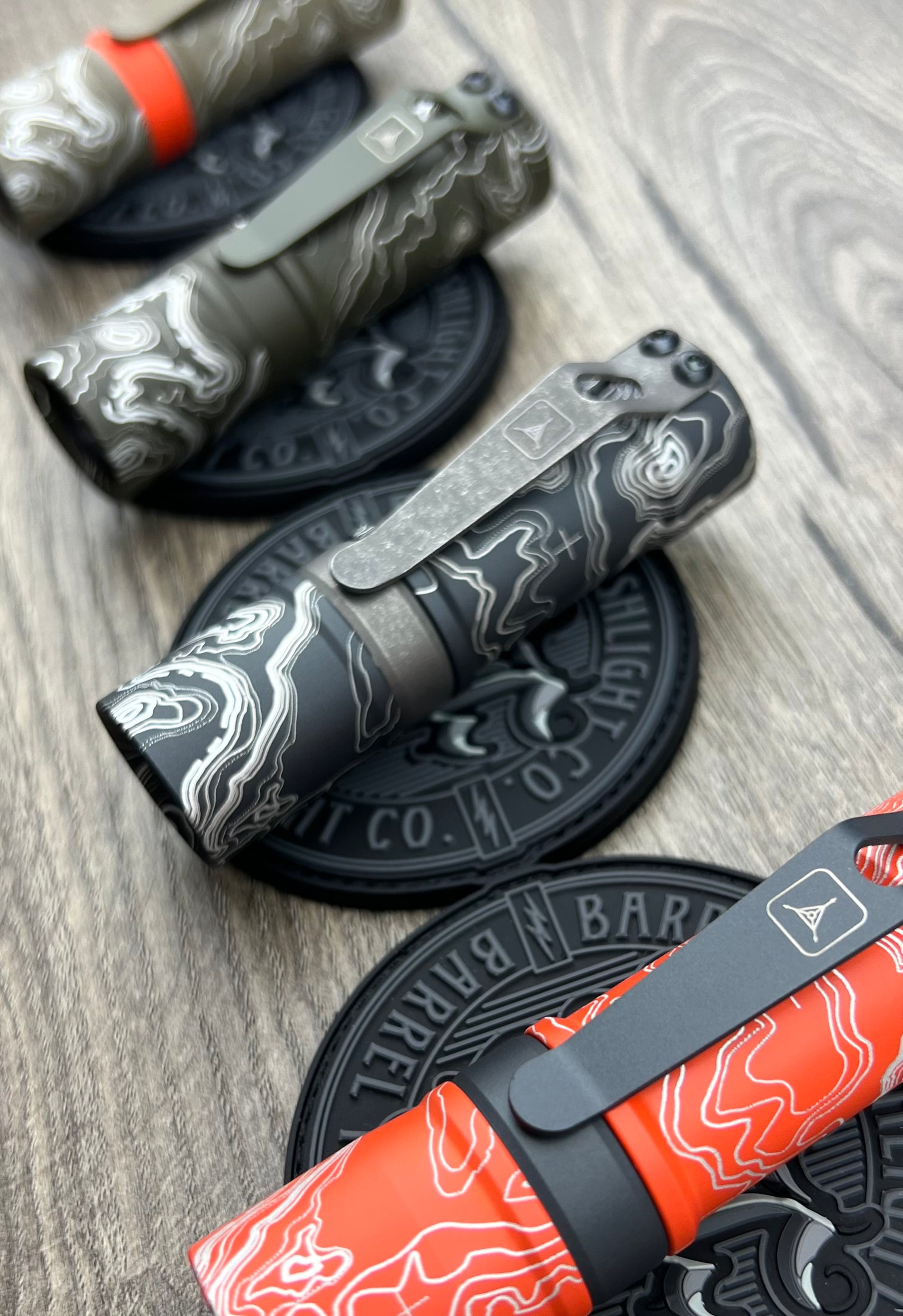

The Barrel Mod 10-1L TAD Edition laser applies our signature topo pattern to the multifaceted aluminum body of the Barrel Flashlight. Countless hours were put in to replicate the complex and rich pattern on such a small surface.

By removing the inner sleeve of the Mod 10-1L it has allowed us to run a larger 18350 battery to extend run times. Using aluminum  has cut the weight nearly in half compared to our standard offering, making daily carry a breeze.

 Blending cutting edge technology with elite craftsmanship, the Barrel 10-1L TAD Edition combines collector grade fit and finish with a rugged build and staggering volume of light.

This compact single cell conservatively puts out over 1000 lumens on 'Turbo' mode, while 'Moon' mode will run for more than ten days on a single battery. Three high performance Cree XP-L HI 5K LEDs, nested into the head, deliver exceptional color rendition and  night resolution.

Rings can be swapped out, enabling you to update and customize your carry without changing your illumination platform.

A solid copper pill enclosing the light engine helps dissipate heat and a protected microprocessor maximizes light output, resulting in a consistent level of light output throughout the battery’s life.

All Barrell aluminum  lights come with a stainless  pocket clip and  screws for comfortable carry and superior strength.

Please Note: Due to the nature of aluminum, titanium, Damascus, ect, patterns and coloration will differ slightly from light to light

Visit to take full advantage of all the features that the M2JN has to offer. From customization and disassembly to accessing the hidden programming mode, Barrel provides excellent tutorials for configuring and caring for your light.


Superior Engine

One of the most advanced drivers on the market, the fully programmable H17F features battery monitoring, full thermal regulation, and advanced programming and memory capabilities.

Visit the Barrell website for programming instructions.


The protected microprocessor maximizes light output, resulting in a consistent level of light output throughout the battery’s life.

User Friendly

The forward click activation switch is easy to use in constant on or momentary modes. Four illumination modes from Moonlight (less than 1 lumen) all the way to Turbo at well over 1000 Lumens,


Barrel Lights feature a removable beauty ring, allowing you to choose from a wide variety of materials and finishes to make it your own.

Batteries Included

An 18350  MAH unprotected battery is included.



  • 1 Mode : Moonlight

  • 2 Mode : Medium

  • 3 Mode : High

  • 4 Mode: Turbo


  • Stainless Steel Pocket  Clip

  • Aluminum Ring

  • Cerekote Finish on Body Under Laser Applied  Topo

  • Copper Heat Sink

  • Aluminum Body and Head


  • Length: 3.55 in  ( 9.02 cm)

  • Bezel Diameter: 99.3 in  ( 2.54 cm)


  • Including Batteries: 2.43 oz (68.8 g)


  • (1) 18350 MAH Unprotected


  • (3) Cree XP-L HI 5K Emitters

  • Laser Applied  Topo Pattern

  • Forward Click Tail Cap Switch

  • High Tolerance American CNC Machining

  • High Impact Hardened Glass Lenses

  • 4 Light Modes

  • Copper Heat Sink

  • Weatherproof and Water Resistant

  • Tailstands

Engineered, Manufactured and Made in the USA

Made in USA
